Using reinforced plastic shell, auxiliary sealed structure, with better mechanical strengthDegree and oil and dust resistance.
Side fixed form, quick contact.
Equipped with various types of drive links.
Widely used in various household electrical, electronic equipment, automation equipment,Instrumentation and other fields
Side fixed form, quick contact.
Equipped with various types of drive links.
Widely used in various household electrical, electronic equipment, automation equipment,Instrumentation and other fields

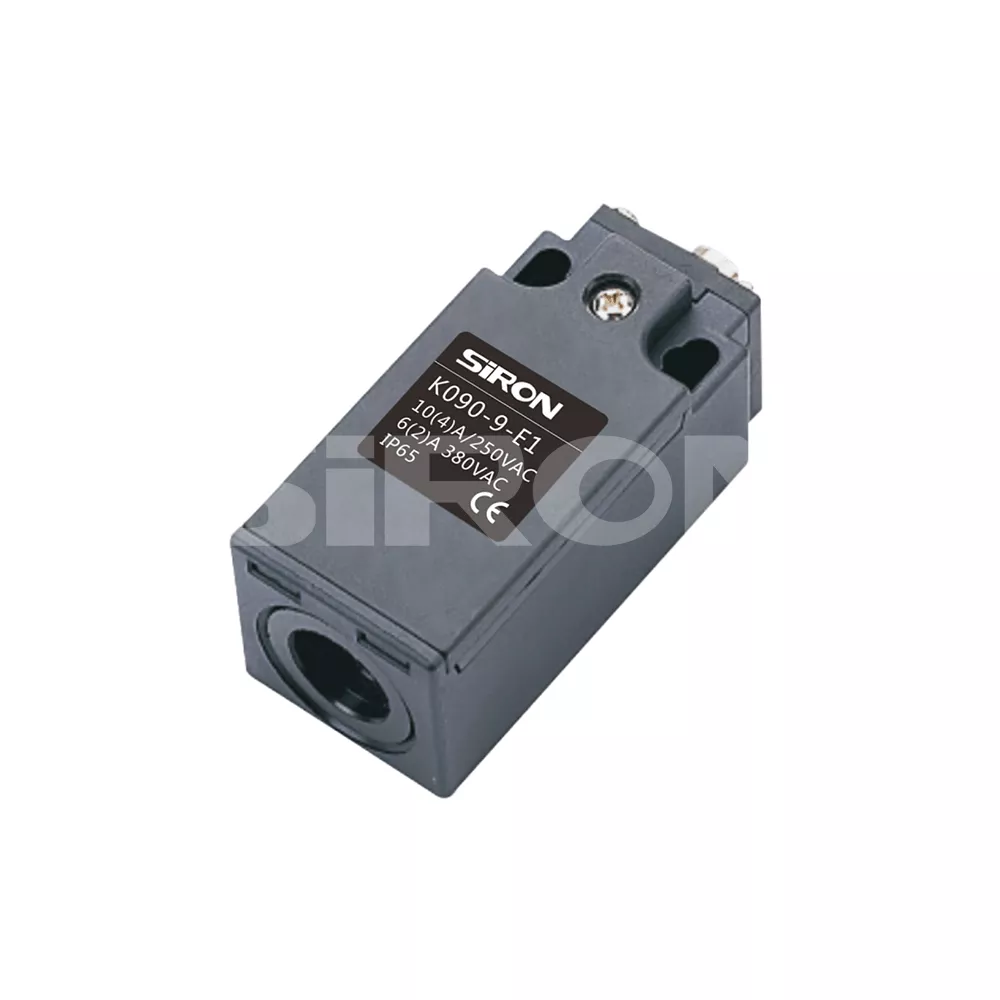

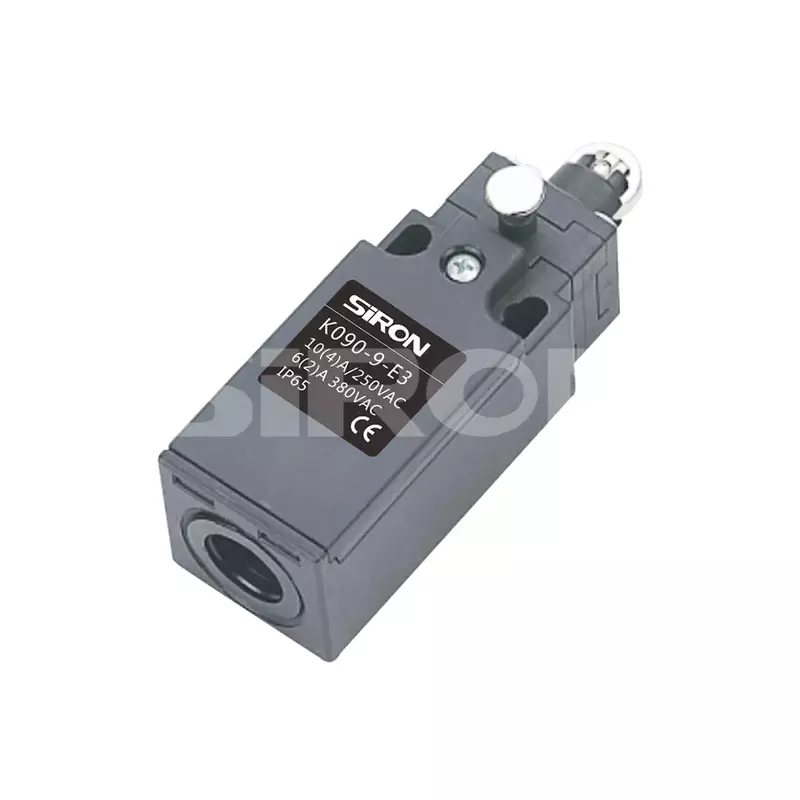

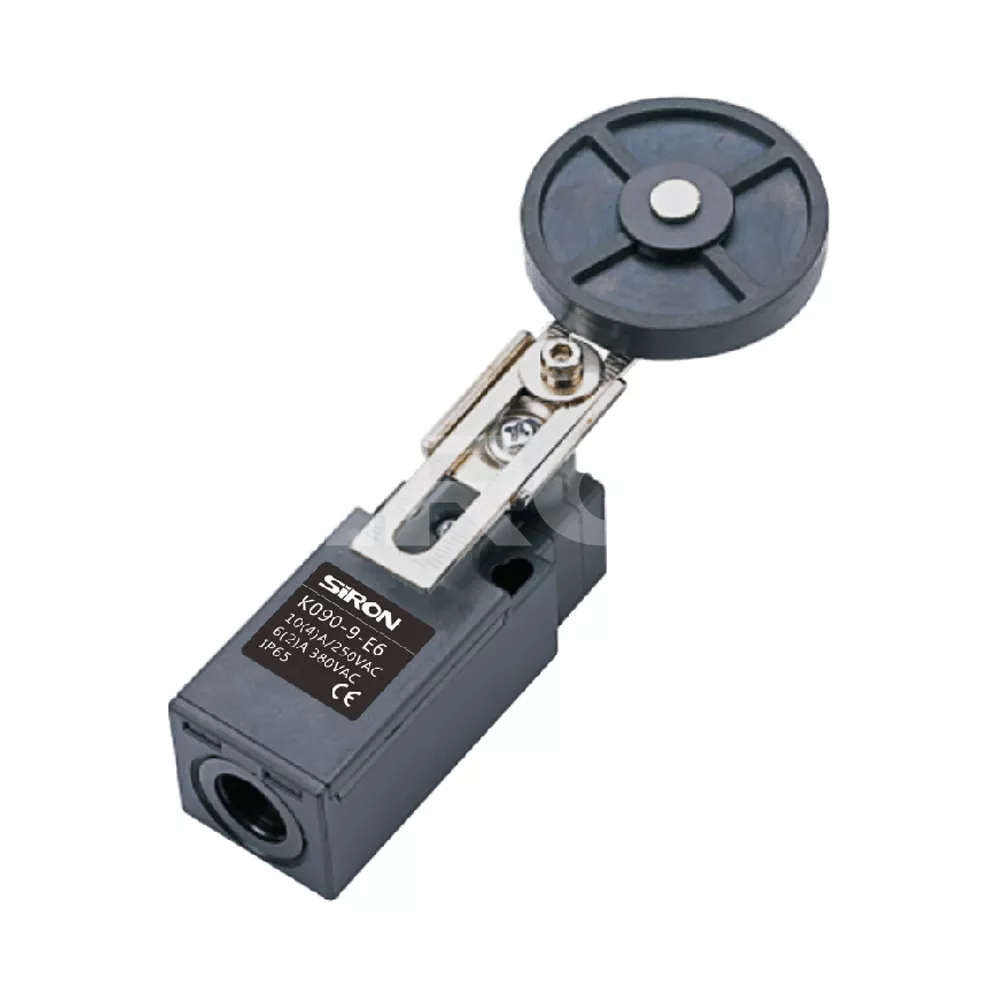

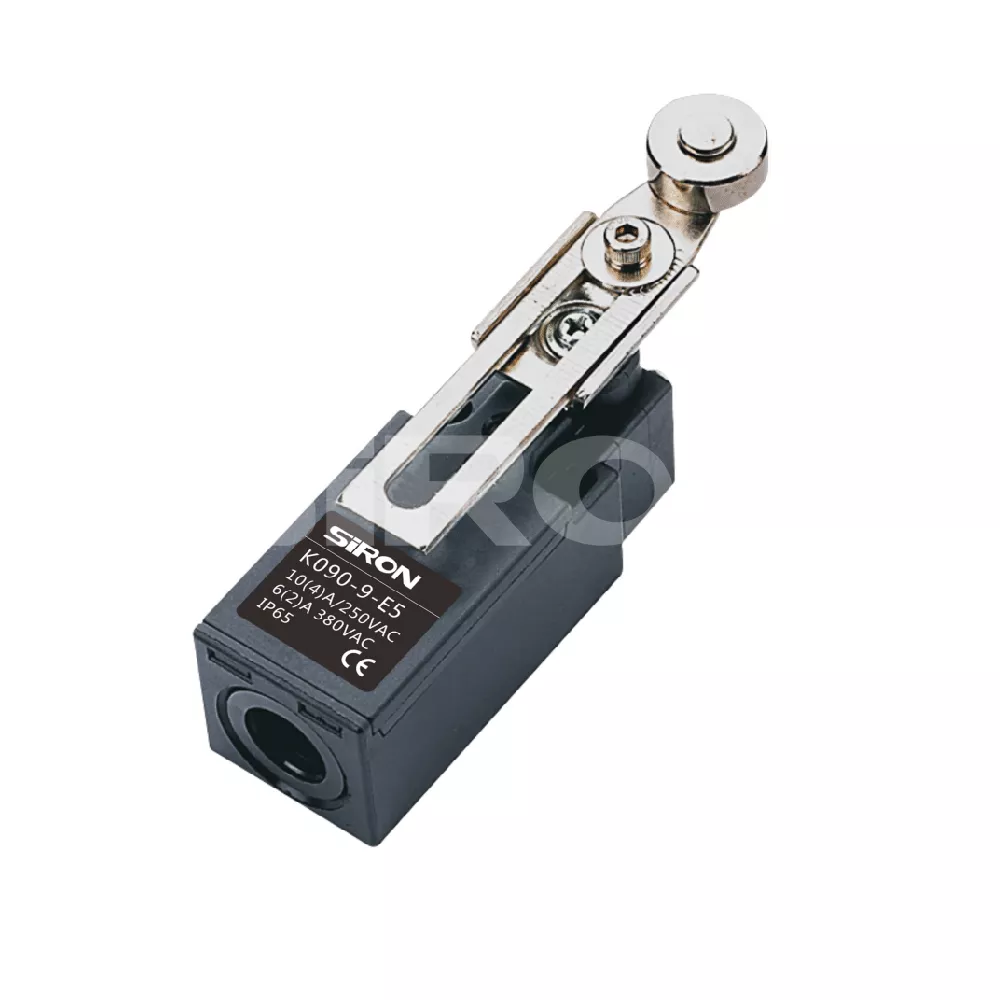

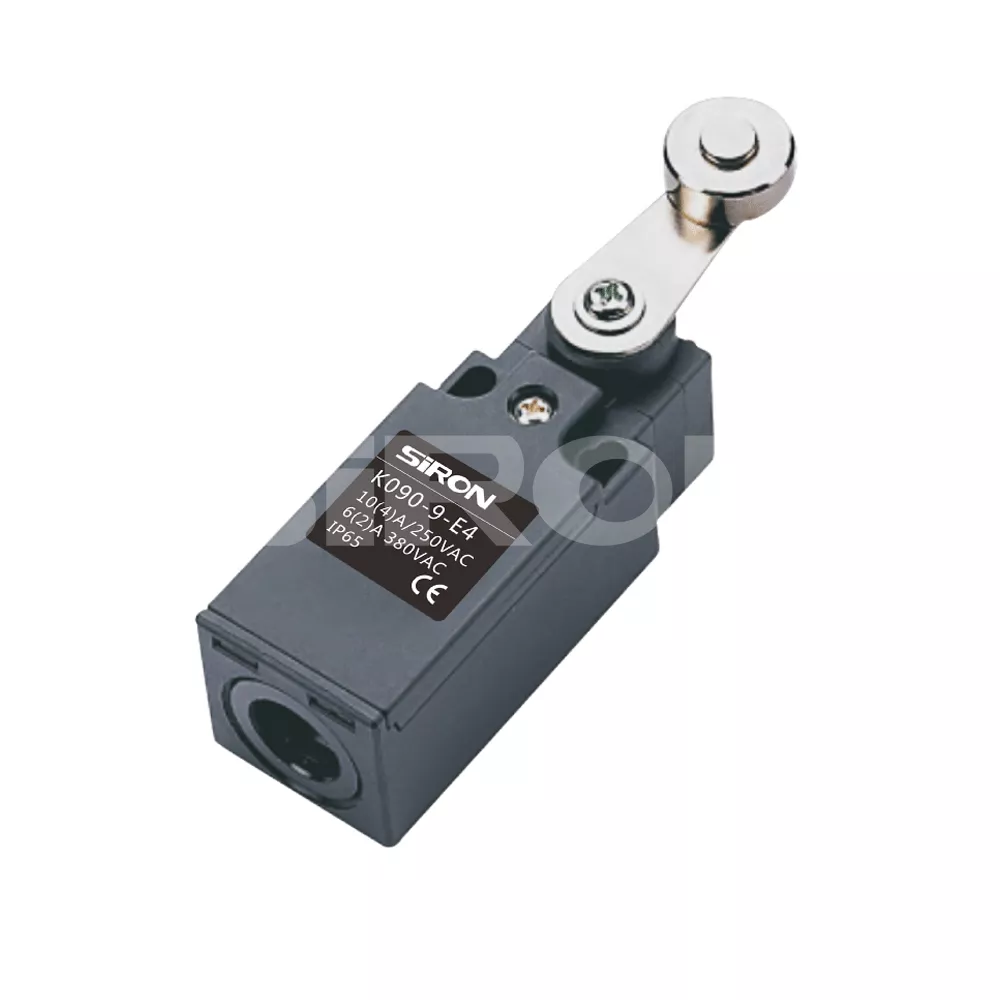

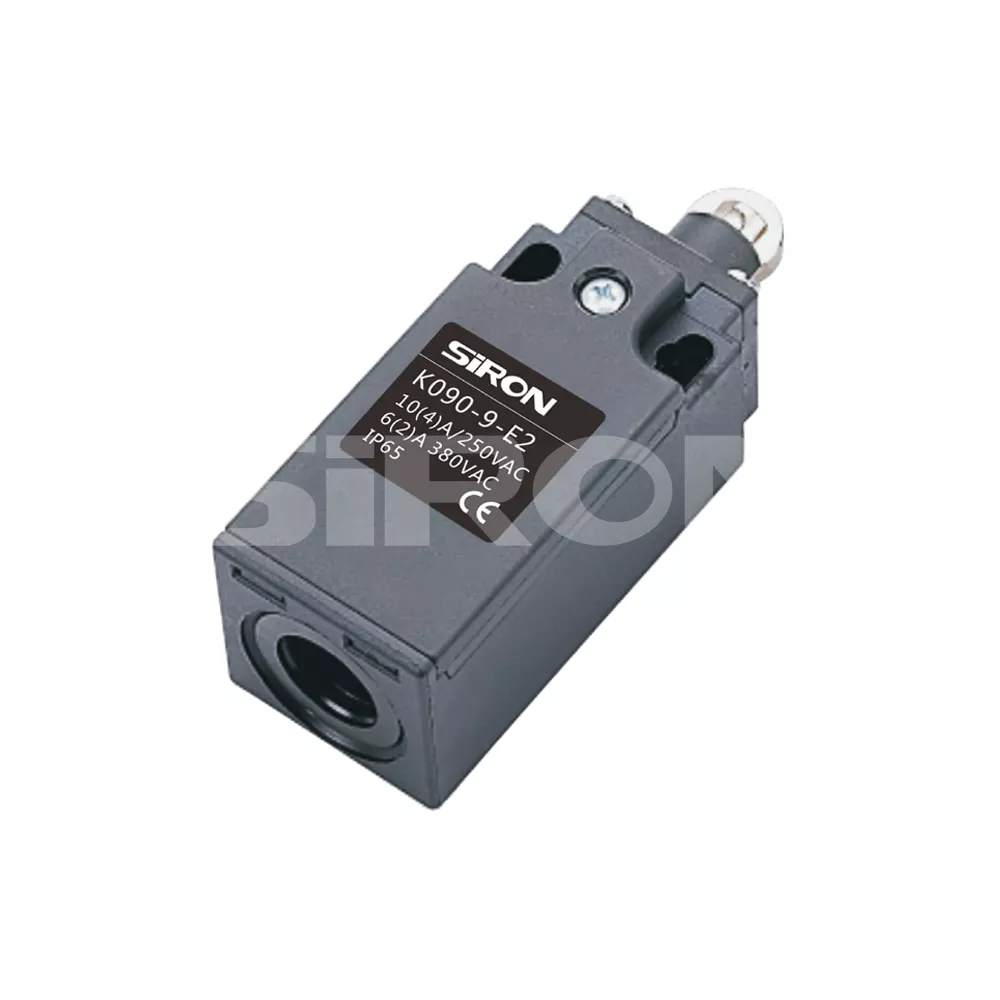

K090-9-E Series
Brand:SiRON
9031809090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
Selection example：K090-9-E1 indicates the K090-9 series, serial number E1.
Contacr Form
Specifications
Name | Travel switch | ||||||

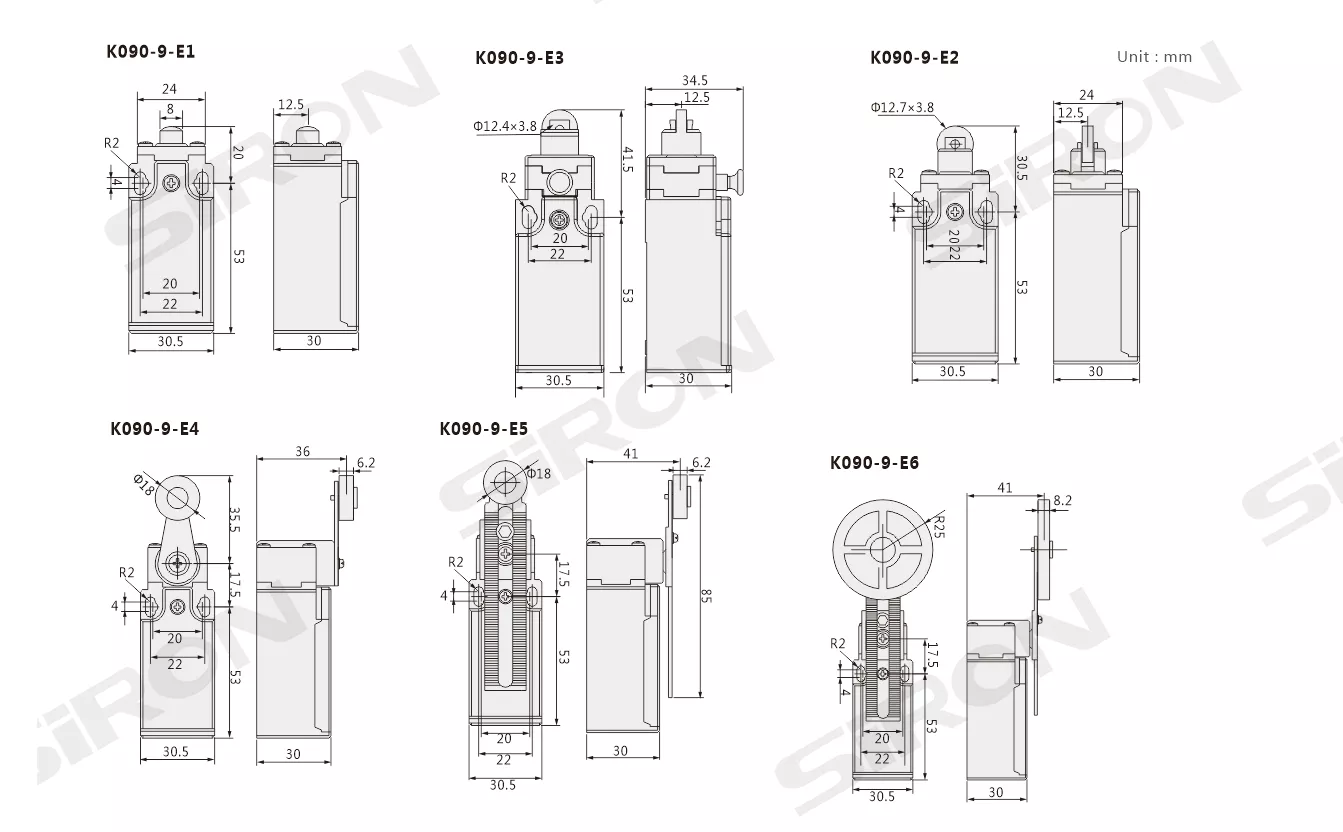

Model | K090-9-E1 | K090-9-E2 | K090-9-E3 | K090-9-E4 | K090-9-E5 | K090-9-E6 | |
Appearance |  |  |  |  |  |  | |
Action force | 700g(6.86N) | 700g(6.86N) | 700g(6.86N) | 500g(4.9N) | 500g(4.9N) | 500g(4.9N) | |
Resilience | 180g(1.76N) | 180g(1.76N) | 180g(1.76N) | 80g(0.78N) | 80g(0.78N) | 80g(0.78N) | |
Pre-travel | 2.5mm | 2.5mm | 2.5mm | 30° | 30° | 30° | |
Overtravel | 3mm | 3mm | 3mm | 70° | 70° | 70° | |
Difference stroke | 1.2mm | 1.2mm | 1.2mm | 15° | 15° | 15° | |
Total trip | 5.8mm | 5.8mm | 5.8mm | 90° | 90° | 90° | |
Rated load | 10(4)A/250VAC,6(2)A 380VAC | ||||||
Operating speed | 5mm～0.5m/s | ||||||
Operating frequency | Mechanical | 120 times per minute | |||||
Electric | 30 times per minute | ||||||
Insulation resistance | 100 mΩ 以 上 DC 500V | ||||||
Contad resistance | 25mΩ(initial value) | ||||||
Medium withstanc woltage | Non-wired | 1000VAC | |||||
| Between terminals | 1500VAC | ||||||
Vibration | Complex amplitude of 10 to 55Hz | ||||||
Shock | Durable | 1000m/s⊃2; | |||||
Malfunction | 300m/s⊃2; | ||||||
life | Electric | 100,000 times or more | |||||
Mechanical | 10 million times or more | ||||||
Protection level | IP65 | ||||||
Operating temperature | -10~+70℃ | ||||||
Operating humidity | <85% | ||||||
