3 control inputs: external sensitivity selection and self-learning can be performed according to the tested material;
Optional self-learning: for example, solar silicon wafers that are covered with water;* Reliable detection of single, double/multiple and paperless detection of materials;
No need for self-learning (plug and play);
Optional self-learning: for example, solar silicon wafers that are covered with water;* Reliable detection of single, double/multiple and paperless detection of materials;
No need for self-learning (plug and play);

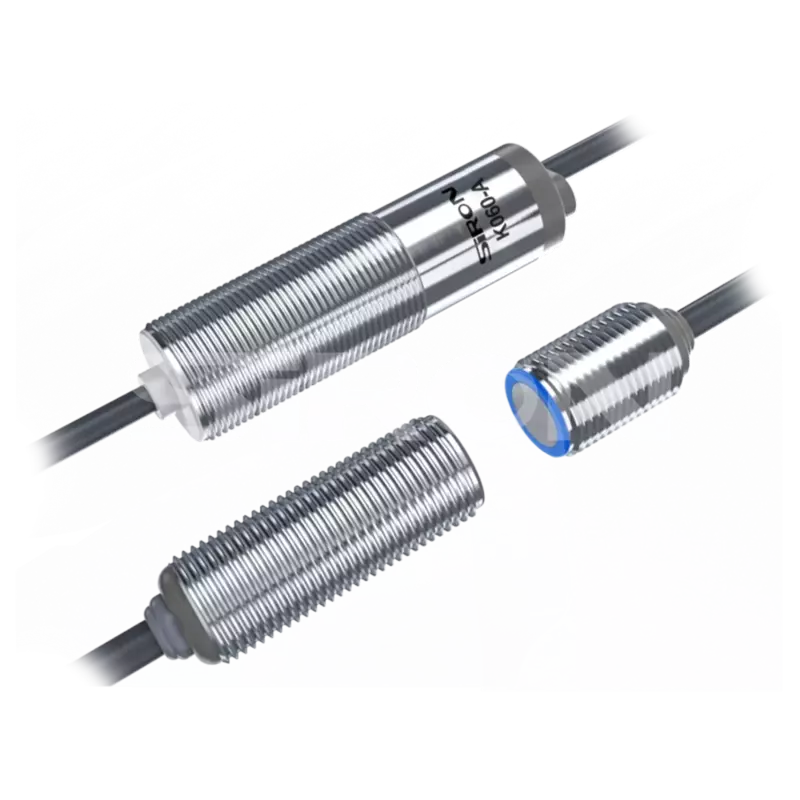

K060 Series
Brand:SiRON
Code:9031809090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
Selection example:K060-A expression K060 series,detect distance is 20～40mm,NPN output.
Specifications
| Name | M12 ultrasonic sensor | |
| Model | K060-A | K060-AP |
Appearance |  | |
| Detection distance | 20~40mm | |
| The scope of work | Paper and papermaterials(grammage 20~1200g/m),alloy laminates,fims (thickness up to 0.2mm),and sef-adhesive films | |
| Design | cylindrical | |
| Operating mode | Dual-sheet controller | |
| Measurement methods | Pulse operation with amplitude estimation | |
| Transducer frequency | 500K Hz | |
| Blind spot | 5mm in front of the transmitter and receiver | |
| Operating Voltage | 20~30V DC,reverse polarity protection | |
| Voltage ripple | ±10% | |
| No-load current loss | ≤50mA | |
| Connection Type | 2mPUR cable,7×0.25mm² | |
| Transceiver cable | Transmitter:5m PVC cable; Cables are connected via M8 connectors to external ultrasonic transducers.:1.2m PVC cable | |
| Output | NPN/PNP output:I"=200mA,Switcher Buck Mode 2V,short-circuit protection | |
| Output logical relationship | Paperless state:White cable OFF,Black cable OFF ;Single sheet state:White cable ON,Black cable OFF; Dual/multiple sheet state:White cable OFF,Blackcable ON | |
| Response time | The automatic operation mode is 2.5ms | |
| Power-on delay | <750ms | |
| Transmitter-receiver spacing | 20~40mm,optimum:20mm±2mm | |
| Allowable angular deviation | at±45°relative to the vertical layer | |
| Material | Nickel Plated Brass | |
| Ultrasonic transducer | Foam polyurethane,glass-filled epoxy resin | |
| Maximum tightening torque ofnut | 3Nm | |
| Protection dass EN60529 | IP65 | |
| Operating temperature | +5~+60℃ | |
| Storage temperature | -40~+85℃ | |
| Control device | Control input:C1~C3 | |
| Control desciption | <-V+6Vlogic 1 (Connect the control input terminal to -V or leave it unconnected);>-V+10V:logic 0(The controlinput terminal is connected to+V | |
| Predetemined area | Teaching is conducted by controlling the input | |
| Indicator light | Green light:Single sheet;Green light flashing:Teaching;Red light:Double/multiple copies;Red flashing:No paper | |
