No need to manually adjust and calibrate;
200K ultrasonic through-beam sensor;
0.5ms response time;
One 0-5VDC analog output;
Two NPN switch output;
The detection range is 6mm, and the detection accuracy is 0.05mm;
With off set display;high-grade aluminum alloy shell,strong and beautiful.
200K ultrasonic through-beam sensor;
0.5ms response time;
One 0-5VDC analog output;
Two NPN switch output;
The detection range is 6mm, and the detection accuracy is 0.05mm;
With off set display;high-grade aluminum alloy shell,strong and beautiful.

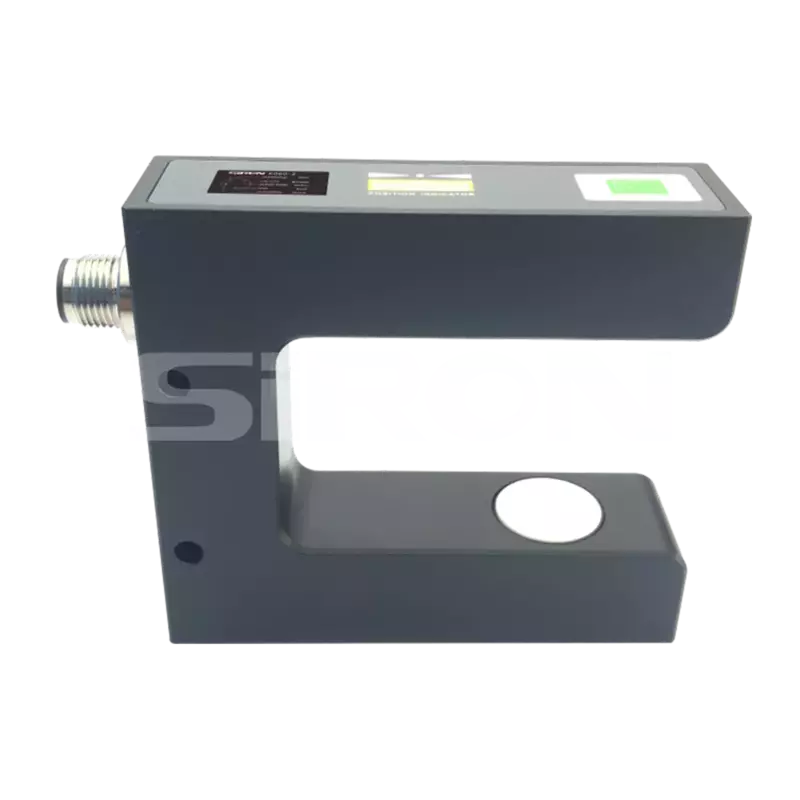

K060-2 Series
SiRON
Code:9031809090
Non-returnable
Product Details
Product Description
About selection
Selection example：K060-2 expression K060 series, 2serial number.
Specifications
| Model | K060-2 |
| Appearance |  |
| Tracking method | Edge tracking |
| Power input | DC10～30V |
| Output signal | 0～5V/Dual-channel switch signal |
| Examination range | 6mm(±3.0mm) |
| Detection accuracy | ±0.05mm |
