Reliable detection of single and double sheets of material;
Single sheet, double/multiple sheet and paperless detection;
No need for self-learning (plug and play);
3 control inputs: external sensitivity selection and self-learning according to the material under test;* Optional self-learning: for example, solar silicon wafers coated with water;
The working distance between transmitter and receiver is: 20 ~ 60mm.
Single sheet, double/multiple sheet and paperless detection;
No need for self-learning (plug and play);
3 control inputs: external sensitivity selection and self-learning according to the material under test;* Optional self-learning: for example, solar silicon wafers coated with water;
The working distance between transmitter and receiver is: 20 ~ 60mm.

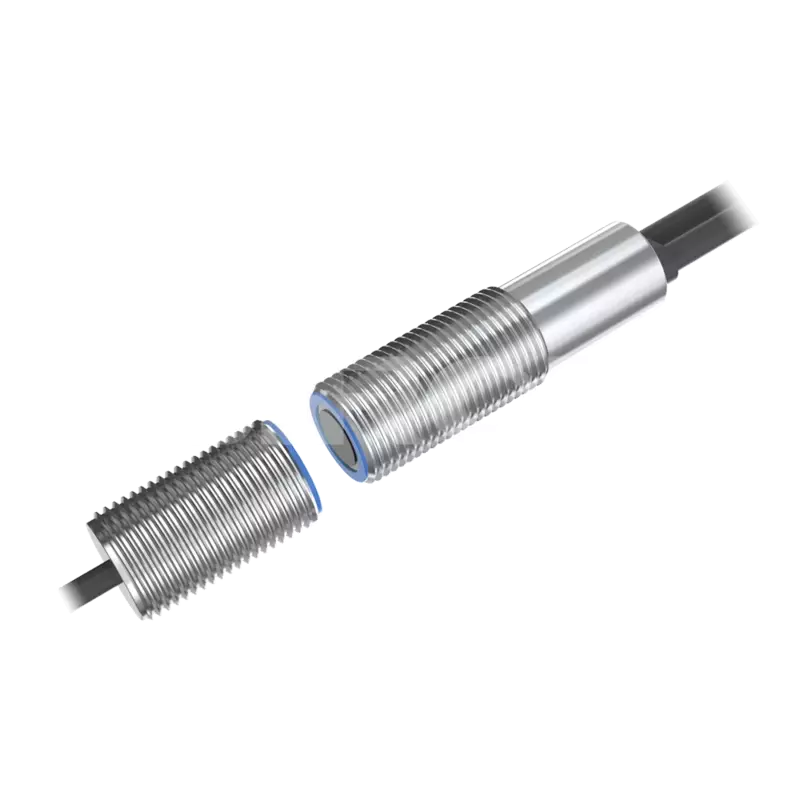

K060-1 Series
SiRON
9031809090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
Selectionexample：
K060-1-A expression K060-1 series, A detectiondistanceis20～40mm, NPN output, Y-type out put logical relationship；
K060-1-BP-Xexpression K060-1series, Bdetection distance is 20～60mm, PNP output, X-type output logical relationship.
Outputlogicalrelationship
| Type | Y-type | X-type |
| Paperlessstate | White wire OFF、Black wireOFF | Whitewire OFF、Blackwire ON |
| Singlesheetstate | Whitewire ON、Blackwire OFF | Whitewire ON、Blackwire ON |
| Dual/multiplesheet state | Whitewire OFF、Blackwire ON | Whitewire ON、Blackwire OFF |
Specifications
| Name | M18ultrasonic sensor | ||||
| Model | NPN N.O+N.C | K060-1-A | K060-1-A-X | K060-1-B | K060-1-B-X |
| PNP N.O+N.C | K060-1-AP | K060-1-AP-X | K060-1-BP | K060-1-BP-X | |
| Appearance |  | ||||
| Detection distance | 20~40mm | 20~60mm | |||
| The scope of work | Papers and papers with a weight per unit area of 20-1200g/m²,alloy laminates, films up to 0.4mm thick,and self-adhesive films | Papers with a weight per unit area of50-1200g/m²,alloy laminates,and self-adhesive films | |||
| Design | cylinder M18ultrasonic transducer | ||||
| Operating mode | Dual-sheet controller | ||||
| Measurement methods | Pulse operation with amplitude estimation | ||||
| Transducer frequency | 400k Hz | 200kHz | |||
| Blind spot | 5mm in front of the transmitter and receiver | ||||
| Operating Voltage | 20~30VDC,reverse polarity protecton | ||||
| Voltage ripple | ±10% | ||||
| No-load current loss | ≤60mA | ||||
| Connection Type | 2M PUR cable,7×0.25mm² | ||||
| Transceiver cable | Ejector:1.2M PVC cable;The cable is connected to an external ultrasonic transducer using an M8 connector.:1.2M PVC cable | ||||
| Output | NPN/PNP output:Imax=200mA,Switch voltage drop of 2V,short-circuit protection | ||||
| Response time | Automatic operation mode is 2.5ms | Automatic operation mode is 6.5ms | |||
| Power-on delay | <750ms | <1.9s | |||
| Transmitter-receiver spacing | 20~40mm;optimum:20mm±2mm | 20~60mm;optimum:40mm±5mm | |||
| Allowable angular deviation | At an angle of ±45°to the vertical plane | ||||
| Material | Nickel Plated Brass | ||||
| Ultrasonic transducer | Foam polyure thane,glass-flled epoxy resin | ||||
| Maximum tightening torque of nut | M18:15Nm | ||||
| Protection class | IP65 | ||||
| Operating temperature | +5℃~+60℃ | ||||
| Storage temperature | -40℃~+85℃ | ||||
| Control device | control input:C1 to C3 | ||||
| Predetermined area | Teaching i conducted by controlling the input | ||||
| Indicator light | Green light:single sheet;Green light flashing:teaching;Red light:double/multiple sheets;Red light flashing:no paper | ||||
