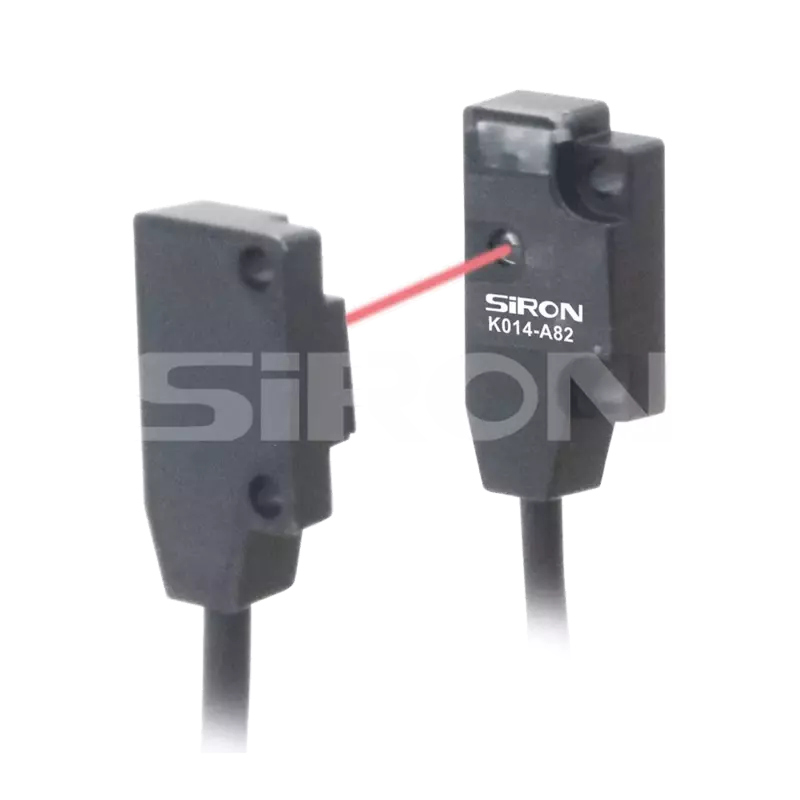

SiRON K014-81～K014-83 Series Photoelectric Sensor Ultra-thin

About selection

 Selection example: K014-81  indicates the K014 series, serial number 81, with NPN output;

                                         K014-81P indicates the K014 series, serial number 81, with PNP outpute.

Specifications

Name		Photoelectric sensor (ultra-thin type)
Model	NPN	K014-81	K014-82	K014-83
	PNP	K014-81P	K014-82P	K014-83P
Type		diffuse reflection	Through-beam	Through-beam
Detection surface		Front detection	Front detection	Side detection
Appearance
Detecion distance		2 ~ 3 0 m m ( White paper)		300mm
Should be sent		Less than 15% of the action distance		/
Detecion of objects		φ1mm opaque object
The powersupply voltage		DC     12~24V±10%
Curent consumpion		Below 2 5 m A
Indicator light		Output indicator light: red; steady indicator light: green
The response time		Less than 1ms (action/reset)
Cast light element		Infrared LED light
Protection circuit		Reverse polarity protection, short circuit protection
Protecion grade		IP64
Environmentalphotometric		Incandescent lamp: below 3000lx, daylight: below 10000lx
Environment temperature		-25～+55℃
Environmental humidity		35～85%RH
Resistance to shock		Frequency 10–500Hz; double amplitude 3mm (MAX:20G), 2 hours each in X, Y, Z directions
Impact resistance		Acceleration of 500m/s⊃2; (approximately 50G), 3 times each in the X, Y, and Z directions
Cable length		2M
Shellmaterial		ABS
