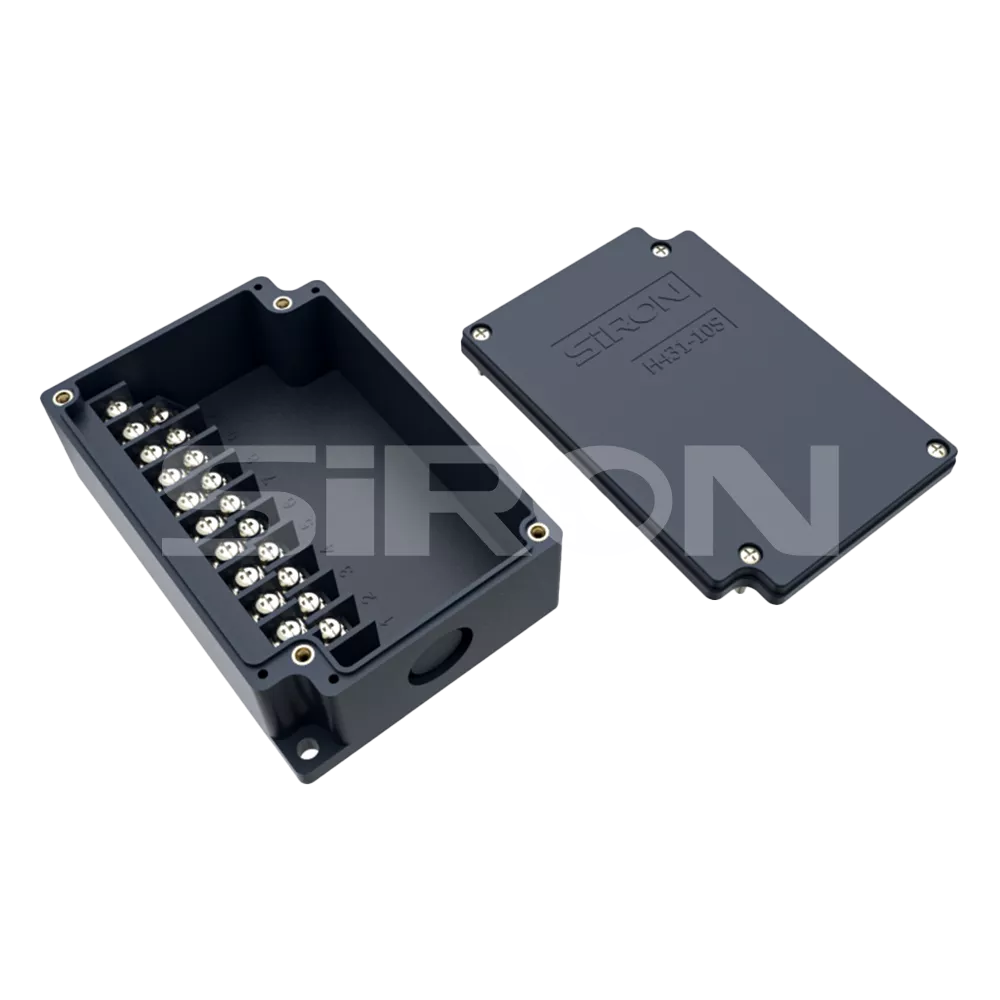

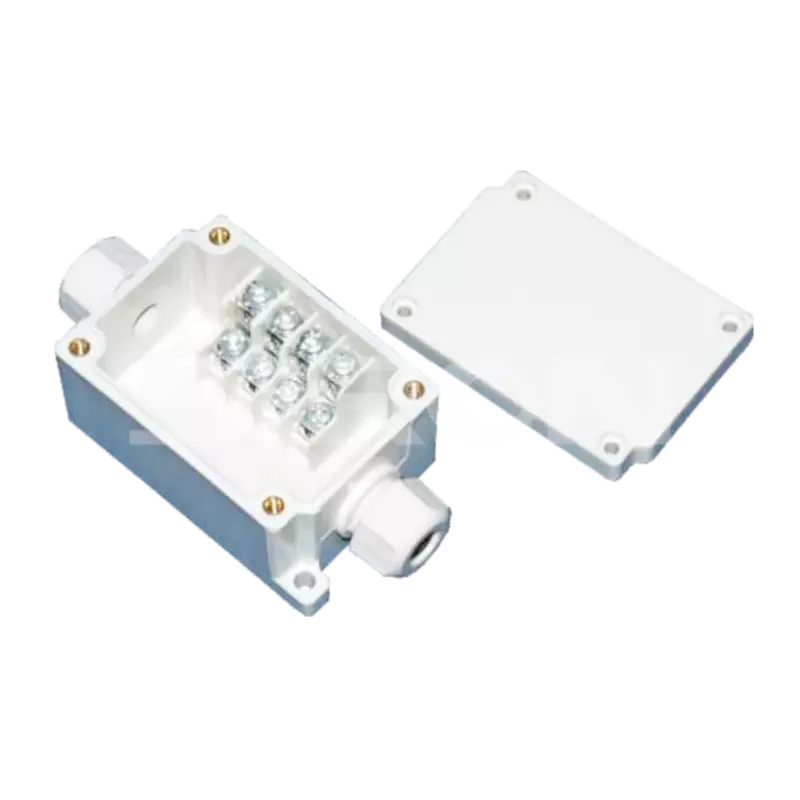

- The terminal box has excelent insulation properties, chemical corrosion resistance and mechanical extrusion resistance
- Meet the high requirements oflP66 protection.
- All the boxes are dustproof, waterproof, resistant to 80 degrees of high temperature, the product is made of high-strength ABS material.
- Beautiful appearance, with high expectations and robustness, terminal block normal voltage 400v, highvoltage 4KV resistance.
- Normal current capacity:0.75mm2~1.5mm²
H431
Brand:SiRON
Code:8538900000
Non-returnable
âı5,000.00
Product Details
Product Description
Order
Type selection reference
| Model | Appearance | Size | ||
| length(mm) | wide(mm) | high(mm) | ||
| H431-4 |  | 102 | 50 | 40 |
| H431-4A | 91 | 55 | 43 | |
| H431-6/6S | 125 | 55 | 40 | |
| H431-6A | 91 | 75 | 43 | |
| H431-10/10S | 110 | 75 | 40 | |
| H431-10A | 110 | 91 | 43 | |
| H431-15 | 180 | 100 | 55 | |
| H431-15A | 180 | 100 | 75 | |
| H431-20 | 223 | 100 | 75 | |
| H431-30 | 200 | 200 | 95 | |
| H431-40 | 250 | 200 | 100 | |
| H431-45 | 380 | 190 | 100 | |
| H431-50 | 380 | 190 | 100 | |
| H431-60 | 380 | 190 | 100 | |
