ABOUT SELECTION
|
| ||
| Type analysis | ||
| ① | LED signal lamp series | D041 |
| ② | Installation mode | 1. Direct install 2.Upright type 3.L-shaped bracket 4. Bent type |
| ③ | Rodlength (Install directly without selecting this option) | Blank：150mm |
| ④ | Number of color layers (multicolor) | 1: One layer (RYG) 2: Twolayers (RG) 3: Threelayers (RYG) 4:Four layers (RYGB) 5:Five Layers (RYGBW) |
| ⑤ | Number of color layers (monochrome) | R: Red Y: Yellow G: Green B: Blue W: White |
| ⑥ | Shade color | Blank：standardtype C：translucencytype |
| ⑦ | Working condition | Blank：Always on B：Always on with buzzer (continuous tone) Q：Always on + flashing with buzzer(intermittent tone) |
| ⑧ | Body color | Blank：White H：Black |
| ⑨ | Rated voltage | Blank：24VAC/DC 12：12VAC/DC 110：110VAC 220：220VAC |
Note: 1. Installation method: Direct installation method with nooption for pole length;

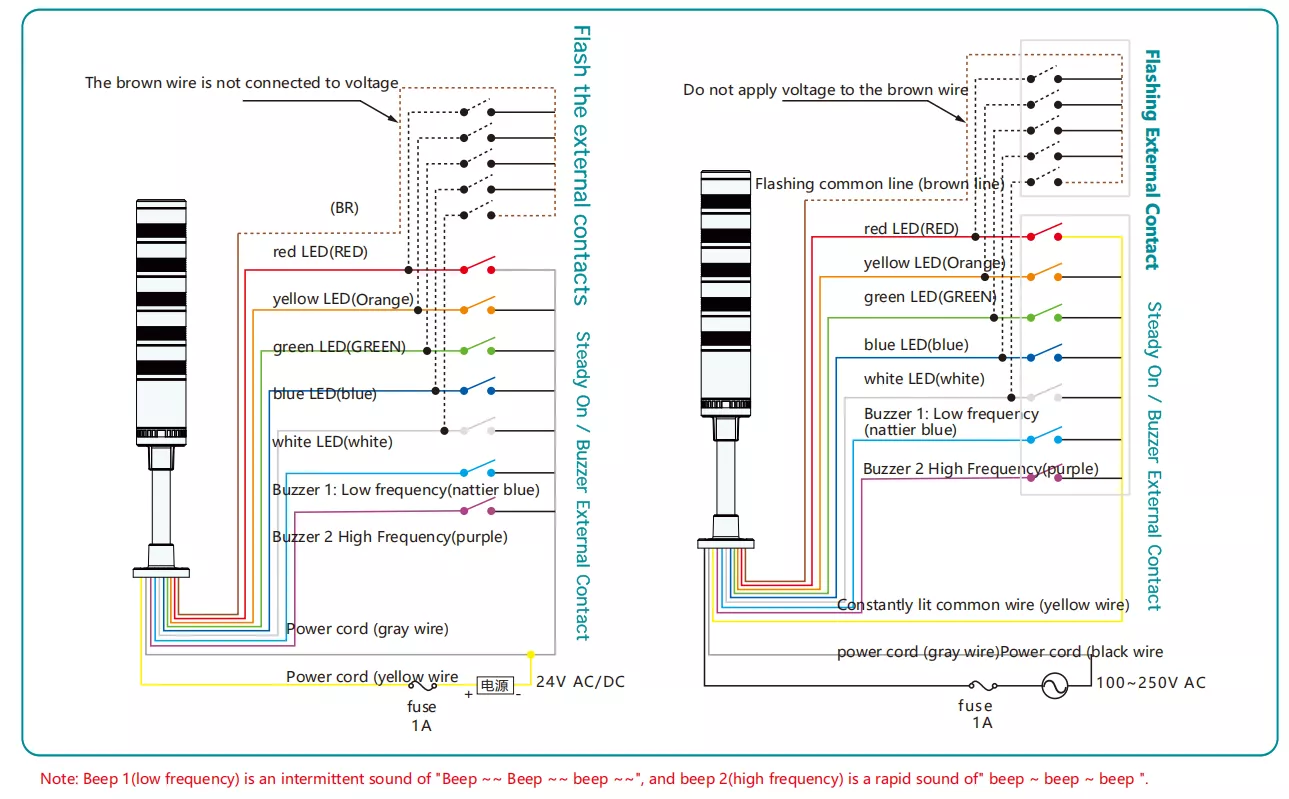

2. Working status:The option"Always on + flashing light with buzzer (intermittent tone)" means that customers can choose the wiring according to their needs to achieve either
"Always on with buzzer" or "flashing light with buzzer".
Specifications
| Model number | D041-1 | D041-2 | D041-3 | D041-4 |
| Appearance |  |  |  |  |
| Rated voltage | 24VAC/DC;12VAC/DC;110V AC;220V AC | |||
| Working condition | 60~≥85db/1m(Manually adjustable) | |||
| Material | lamp shade PC +lamp housing ABS | |||
| Number of color layers | 1~5 floor | |||
| Working temperature | -15℃~+40℃(No icing) | |||
| Storage temperature | -20℃~+70℃(No icing) | |||
| Working humidity | 40~85%RH(No frosting) | |||
| Anti-vibration | 10~55Hz,amplitude 0.75mm | |||

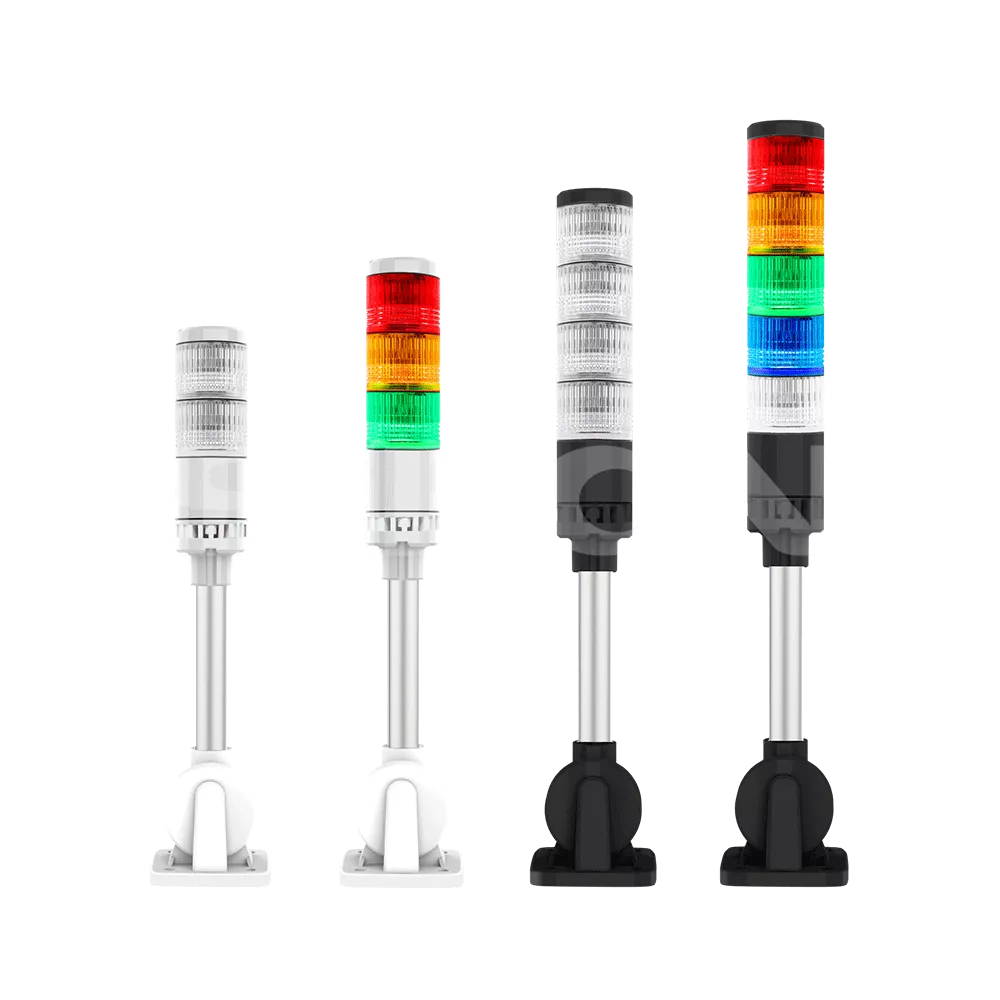

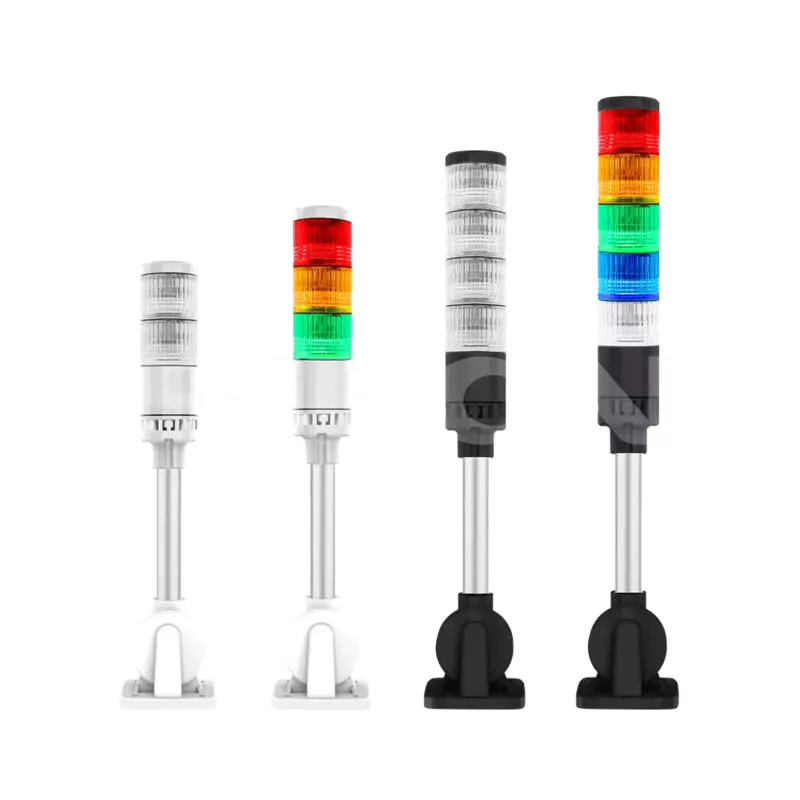

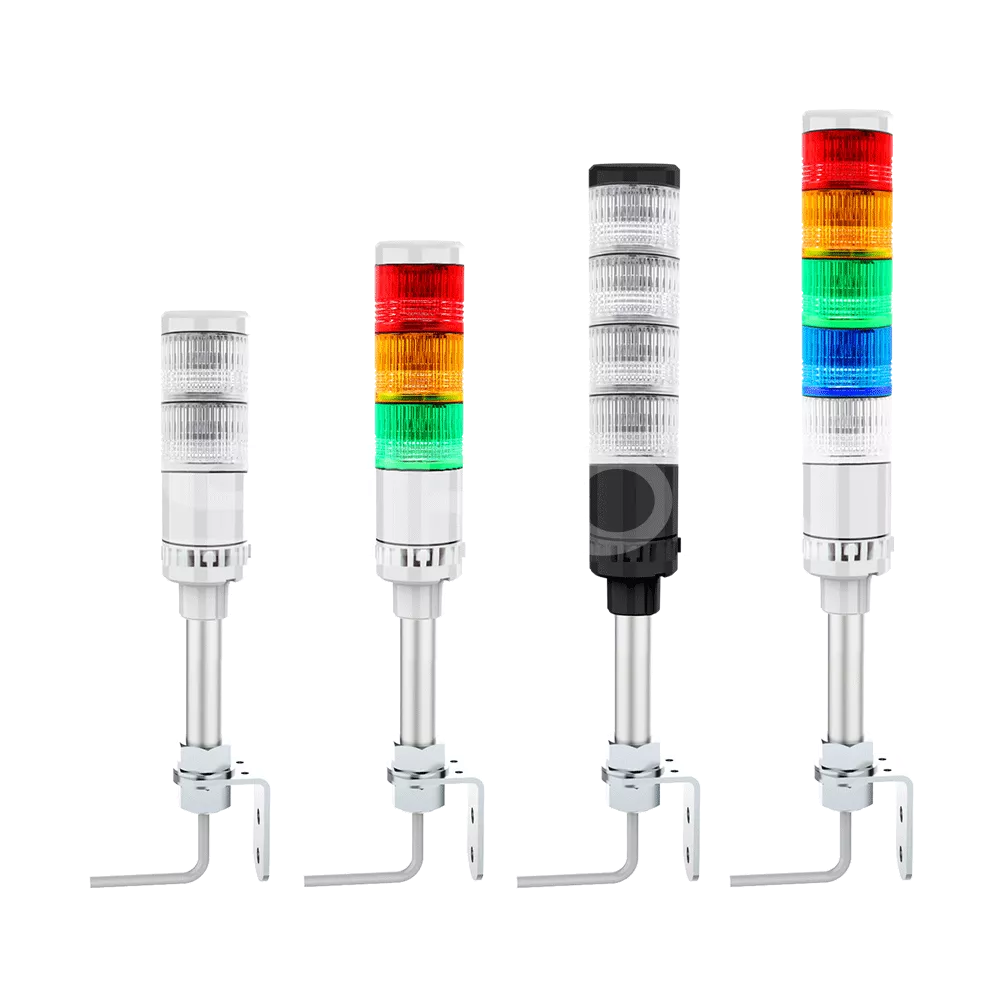

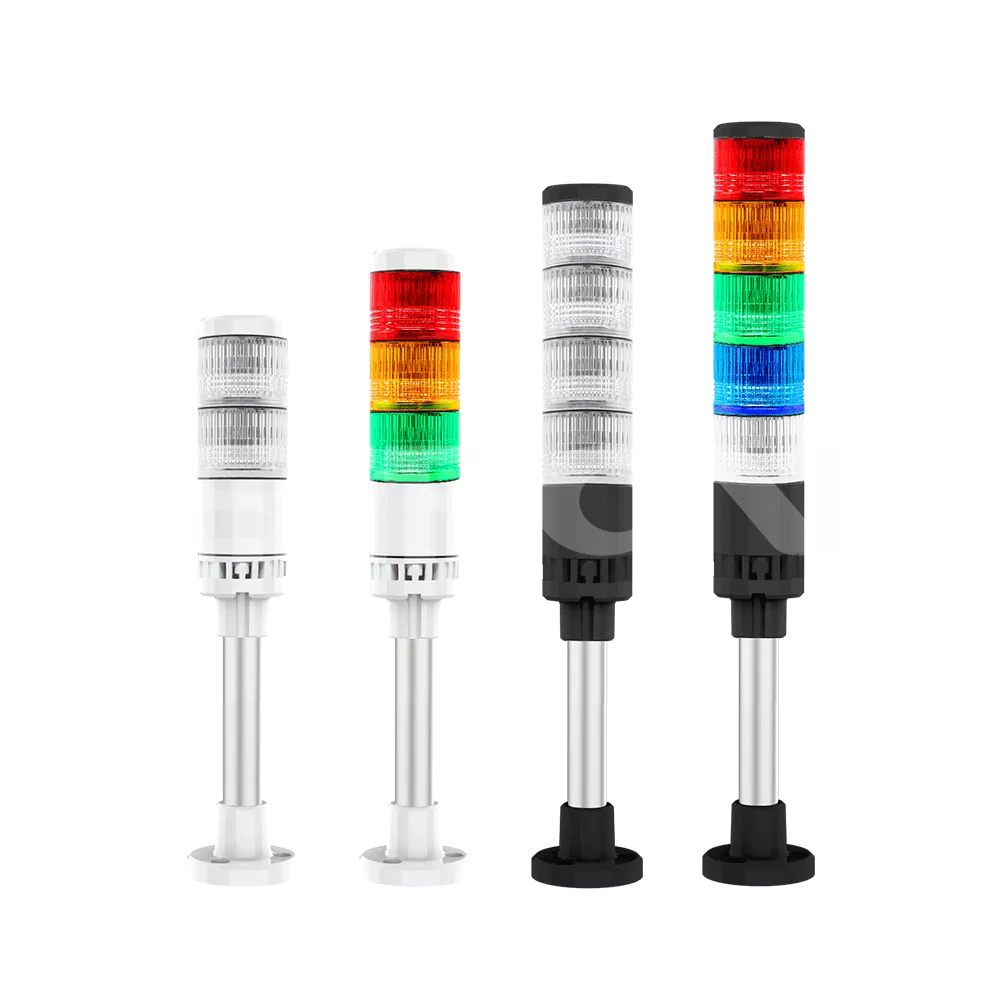

| Installation method | Direct install,Upright type,L-shaped bracket,Bent type | |||
| Protection grade | IP65 | |||
| Signal polarity | NPN/PNP general | |||
| Standard wiring length | 1500mm | |||
| Luminescent lamp source color |
Red Yellow Green Blue White | |||
