Acrylic light guide mandrel and PC lamp shade. The structure is delicate and the light is soft.
Aluminum alloy foldable base structure. Make sure the warning light has good heat dissipation.
Customizable inner LOGO. High recognition.

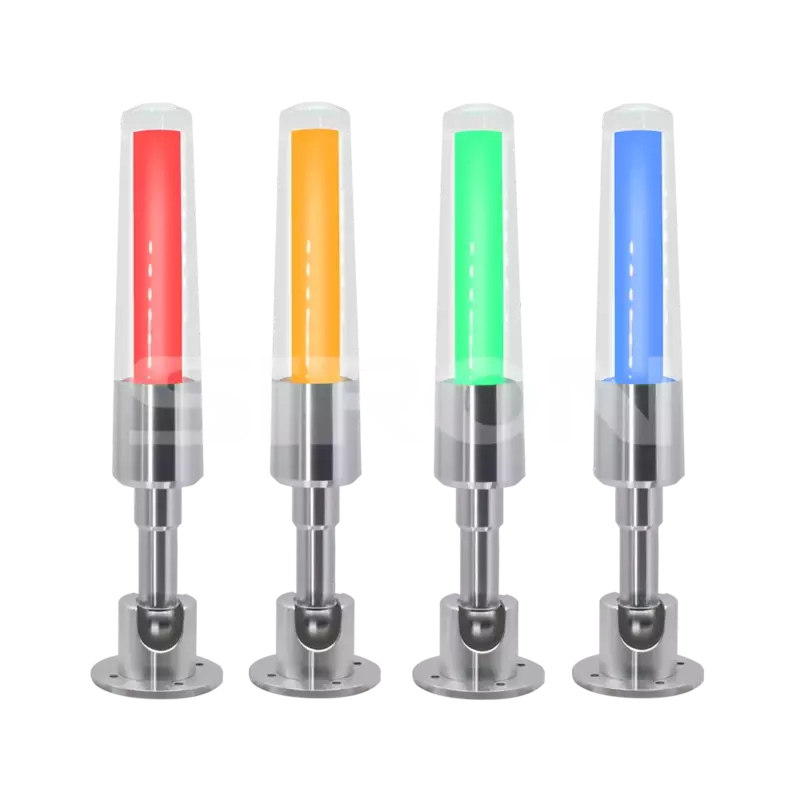

D021-C Series
SiRON
9405410000
Non-returnable
₹5,000.00
Product Details
Product Description
ABOUT SELECTION
|
| ||
| Type analysis | ||
| ① | LED signal lamp series | D021-C |
| ② | Mounting holes | 3: Three-holebase 4: Four-holebase |
| ③ | Color layers（Acquiesce） | 3：Singlelayertricolor（RYG） 4：Singlelayerfourcolor（RYGB） |
| ④ | Color selection (Articles made to order） | R: red Y: yellow G: green B: blue （Top down color ordering） |
| ⑤ | Working condition | Blank：Always on B：Always on with buzzer S：Flashing Q：Flashing with buzzer |

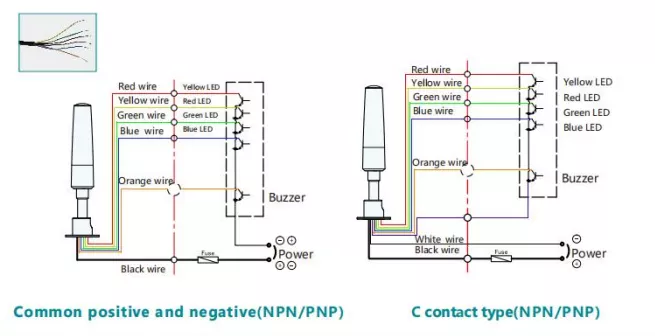

| ⑥ | Connection mode | Blank: common positive/ negative Universal C: contacttype |
| ⑦ | Rated voltage | Blank ：24VDC 220：220VAC |
Specifications
| Appearance/Body color | Appearance:Base ball rod design light body color: silver |
| Input voltage/lnput current | Input voltage:24V DC/220V AC Input Current:40~160mA |
| The material | PC(bullet proof rubber)lamp shade +acrylic lamp body core shaft+aluminum alloy base |
| Power | Single color 0.96W, total power4.6W |
| Lhigts ource/Luminous angle | Light source:Patch 2835 LED,0.2W/pcs luminous Angle:The whole lamp can be seen by 360° |
| Sound intensity/Class of protection | Sound intensity:Buzzer> 85dB Protection level:IP40 |
| Color layer | Single layer 3 color/ Single layer 4 color |
| Working condition | Always on/Always on with buzzer/Flashing/Flashing with buzzer |
| Installation mode | Bend |
| Service life/Standard wiring length | Working life:50000h Wiring length:1500mm |
| Number of holes in base | 3 holes/4 holes |
| Connection mode | Direct power input type (common positive/negative)/contact type |
| Operating temperature/Storage temperature | Operating temperature:-20~45℃ Storage temperature:-40~70℃ |
| Operating humidity/Storage humidity | Operating humidity:10~90%Storage humidity:10~90% |
| Luminescent lamp source color |
Red Yellow Green Blue |
