Exquisite and beautiful structure, unique and innovative appearance. Fully functional and cost-effective.
High light LED patch. High brightness, large Angle, low thermal resistance.
The overall structure design has good heat dissipation. The high quality drive plate guarantees the overall life of the lamp.

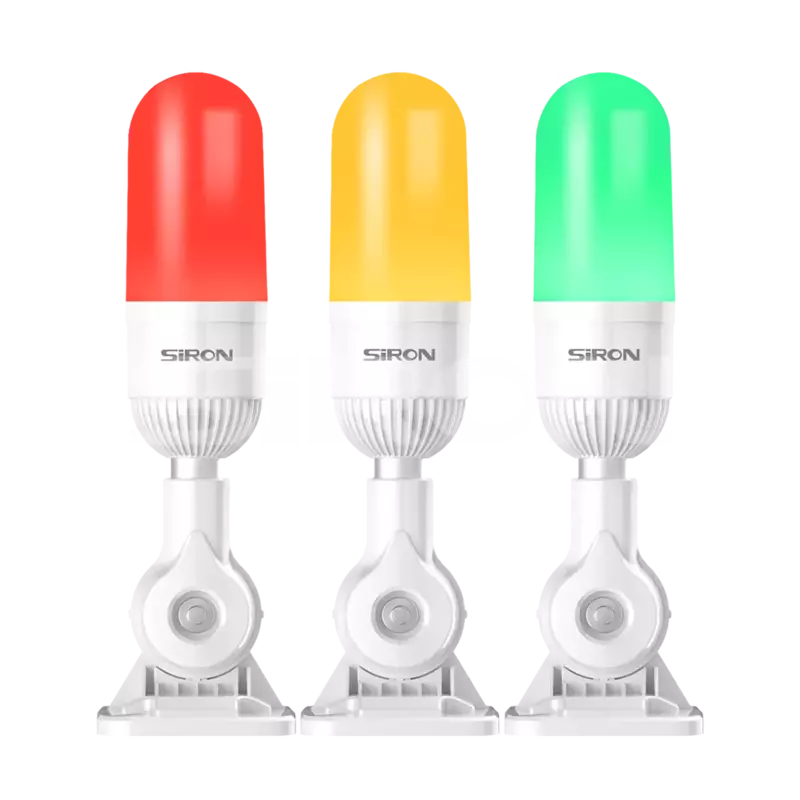

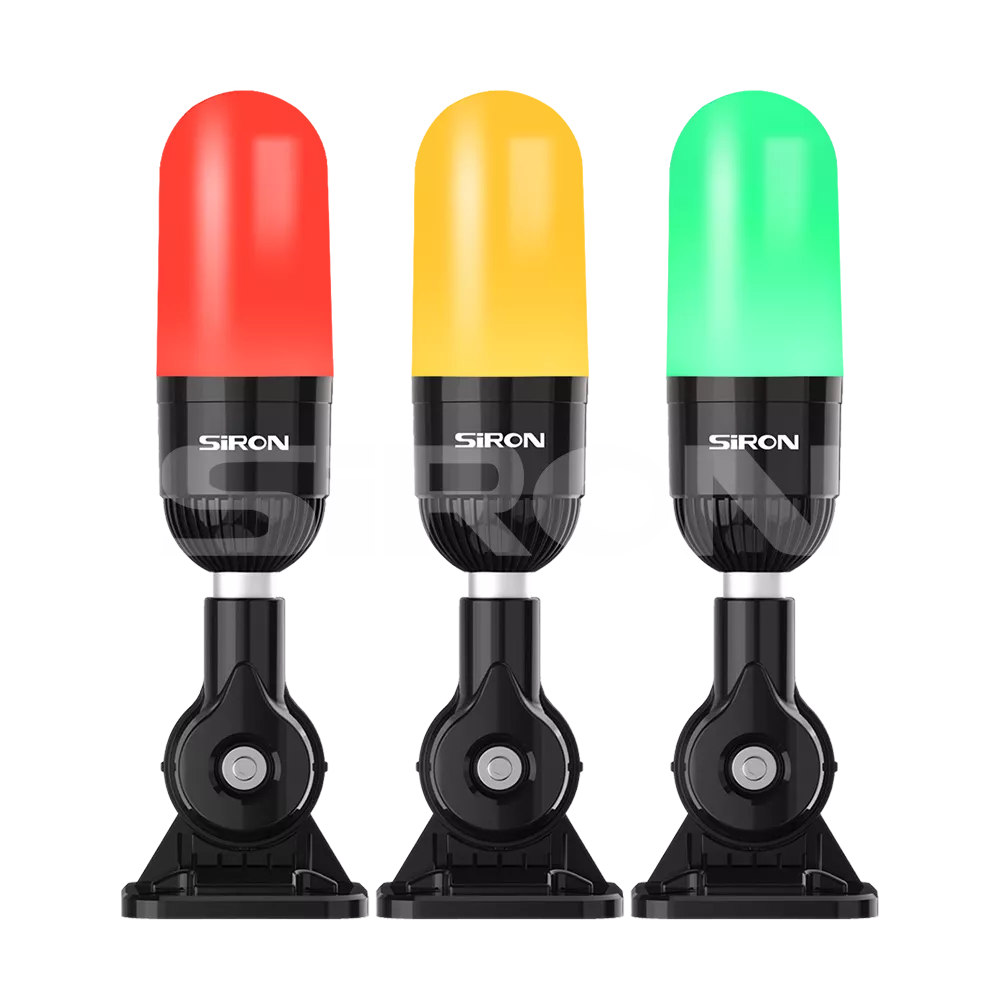

D020-2 Series
Brand:SiRON
Code:9405410000
Non-returnable
₹5,000.00
Product Details
Product Description
ABOUT SELECTION
|
| ||
| Type analysis | ||
| ① | LED signal lamp series | D020-2 |
| ② | Working condition | B：Always on with buzzer Q：Flashing with buzzer |
| ③ | Case color | Blank: White H: Black |
Specifications
| Model number | D020-2B | D020-2B-H | |||
| Appearance |  |  | |||
| Input voltage/lnput current | Input voltage:DC 24V Input current:monochrome 50mA Buzzer 15mA | ||||
| The material | PC lamp shade +ABS lamp shell | ||||
| Power | 1.2W～2W | ||||
| Lhigt source/Luminous angle | Light source:Patch 2835 LED luminous Angle:360° | ||||
| Sound intensity/Class of protection | Sound intensity:>90dB Protection level:IP54 | ||||
| Color layer | Single layer tricolor | ||||
| Working condition | Always on with buzzer/ Flashing with buzzer | ||||
| Installation mode/Number of flashes | Installation mode:Bent 180° Number of flashes:60-70/min | ||||
| Service life/Standard wiring length | Working life:70000h Distribution length:500mm | ||||
| Connection mode | NPN/PNP common | ||||
| Ambient temperature/storage temperature | -20~45℃/-40~70℃ | ||||
| Ambient humidity/Storage humidity | 10~90% | ||||
| Luminescent lamp source color |
Red Yellow Green | ||||
