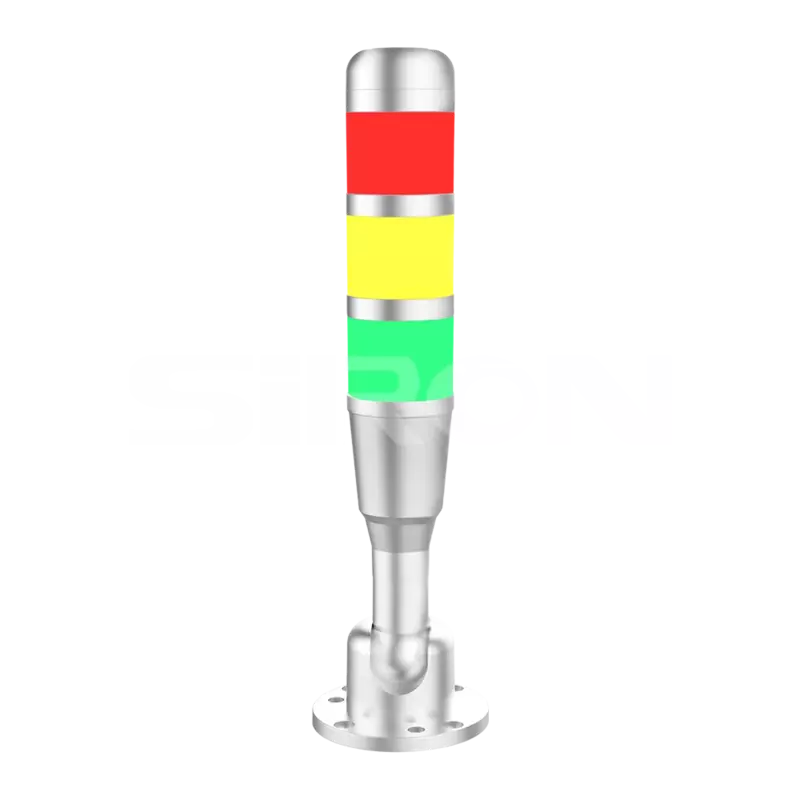

High brightness LED light source. Improved visibility over long distances.
Vivid color recognition effect. Can meet a variety of needs.
90 degree Angle bending, stylish appearance. Heat and shock resistance.
D019 Series
Brand:SiRON
Code:9405410000
Non-returnable
₹5,000.00
Product Details
Product Description
ABOUT SELECTION
|
| ||
| Type analysis | ||
| ① | LED signal lamp series | D019 |
| ② | Working condition | Blank: Always on B: Always on with buzzer S: Flashing Q: Flashing with buzzer |
| ③ | Signal polarity | Blank: NPN P: PNP |
Note: Only PNP is selected when the D019 works in shiny and shiny with buzzer.
Specifications
| Lamp base color | Silver | BeamAngle | 360° |
| Voltage | 24V DC | Service life | 50000h |
| Electric current | Red light 0.04A,yellow light 0.04A,green light 0.02A | Ambient temperature | -25~55℃ |
| Working condition | Always on/Always on with buzzer/ Flashing/Flashing with buzzer | Signal polarity | NPN common positive electrode/ PNP common negative electrode |
| Chromatic number | Three-colour | Standard wiring length | Standard 1500mm |
| Material | Lamp shade opal PC+lamp shell ABS | Luminescent lamp source color |
Red Yellow Green |
| Class of protection | IP20 |
