ABOUT SELECTION
|
| ||
| Model analysis | ||
| ① | LED signal light series | D016 |
| ② | Number of color layers | 3: Red Yellow Green (RYG) 4: Red Yellow Green Blue (RYGB) |
③ | Working status | Blank: Always on B: Always on with buzzer S: Flashing Q: Flashing with buzzer B：Black W: Gray white |
| ④ | Signal polarity | Blank：NPN P：PNP |
Note: 1. Select PNP only when the working state is shiny or shiny with buzzer.
2. In the working state of D016-4, shiny and shiny tape buzzer are not optional.
3. Standard wiring length 1500mm, if you need to customize the size, please contact our sales.
Specifications
| Model | D016-3 | D016-4 |
| Appearance | ||
| Input voltage/Rated current | Voltage:24V DC Current:Red light 0.05A, yellow light 0.06A, green light 0.02A, blue light 0.02A | |
| Material/installation mode | Material:Lamp shade PC+lamp shell ABS Installation method:bent | |
| Class of protection/Beam Angle | IP20/360° | |
| Service life/Ambient temperature | 50000h/-25~55℃ | |

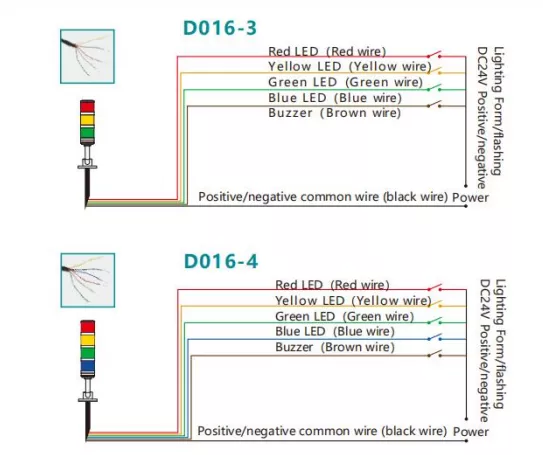

| Signal polarity/Standard wiring length | Signal polarity:NPN common positive /PNP common negative Standard wiring length:1500mm standard | |
| Working condition | Always on/Always on with buzzer/flashing/flashing with buzzer | Always on/Always on with buzzer |
| Chromatic number | Three-colour | Four-colour |
| Luminescent lamp source color | Red Yellow Green | Red Yellow Green Blue |
