Exquisite appearance design. Transparent lampshade is brighter.
Equipped with a buzzer. Up to 95 decibels or more.
Various installation, methods are available. Easy and quick installation.
D016-B Series
Brand:SiRON
Code:9405410000
Non-returnable
₹5,000.00
Product Details
Product Description
ABOUT SELECTION
|
| ||
| Model analysis | ||
| ① | LED signal lamp series | D016-B |

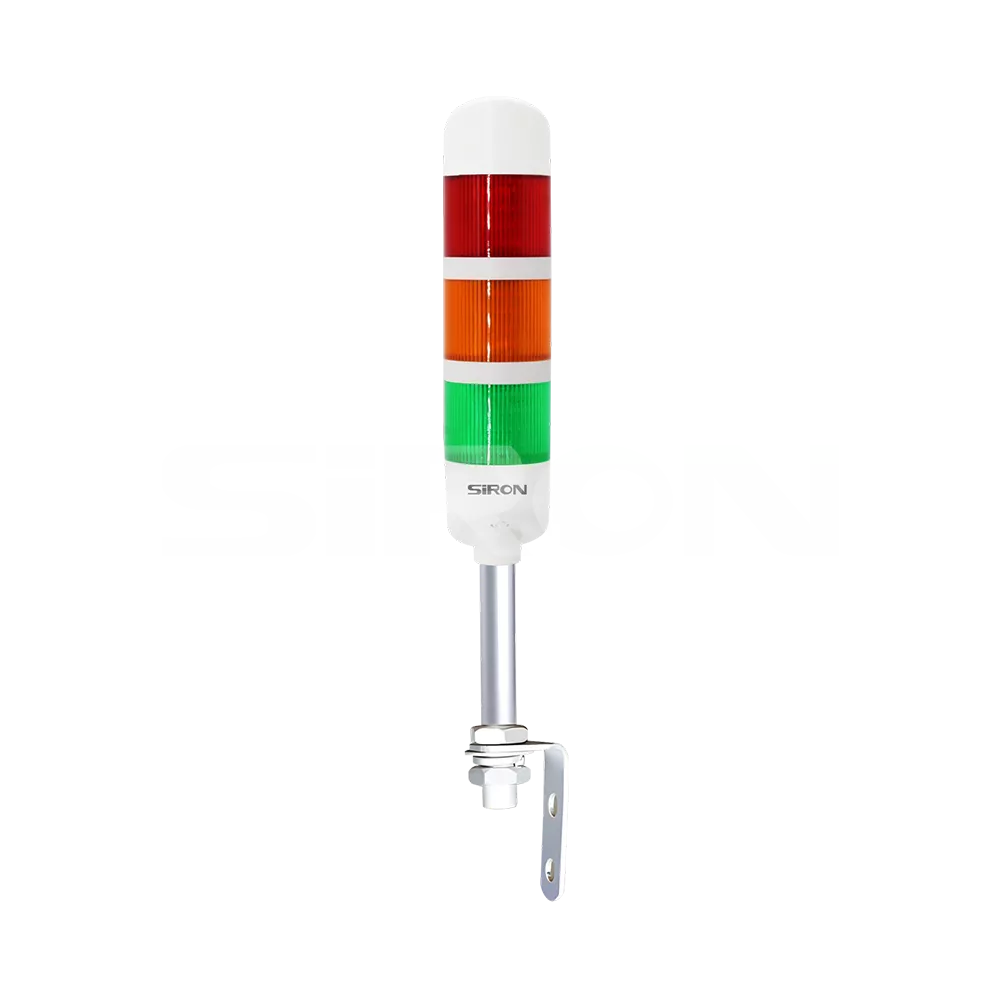

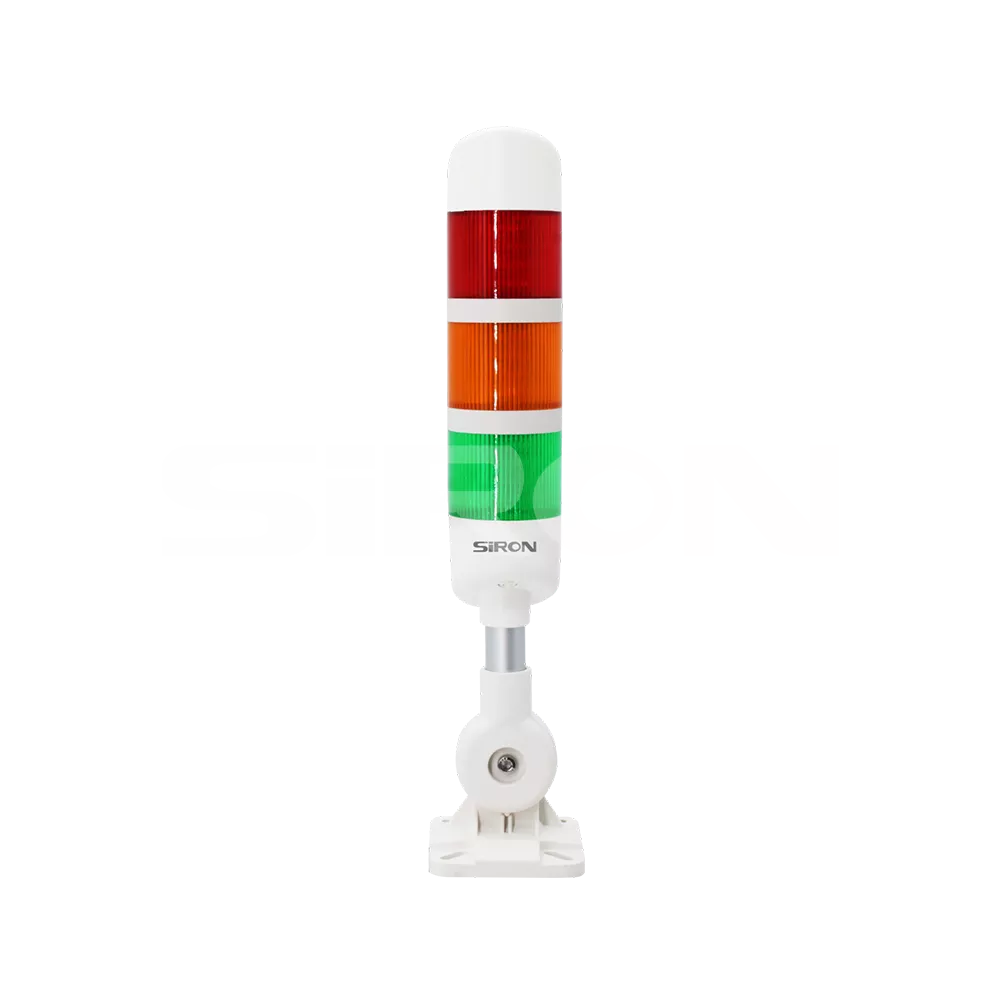

| ② | Installation mode | 1: Upright type 2: Bending type (round three holes) 3: Bending type (square four holes) 4: Rodtype L |
③ | Color layers（Acquiesce） | 1: Single layer 2: Second layer (RG) 3：Threelayers（RYG） 4：Four-layers（RYGB |
| ④ | Color selection（Articles made to order） | R: Red Y: yellow G: green B: blue (color order from top to bottom) |
| ⑤ | Working condition | Blank: Alwayson B: Always on with buzzer |
| ⑥ | Case color | Blank: White H: Black |

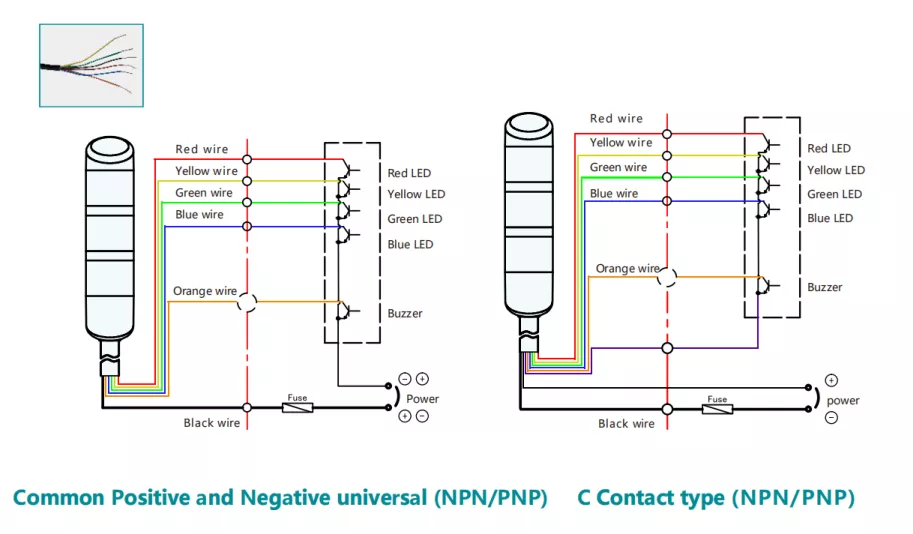

| ⑦ | Connection mode | Blank: commonpositive/negative Universa l C: contact type |
| ⑧ | Rated voltage | Blank：24VDC 220：220VAC |
Specifications
| Model number | D016-B1 | D016-B3 | D016-B4 |
| Appearance |  |  |  |
| Input voltage | 24V DC/220V AC | ||
| Input current | 60~150mA | ||
| The material | Lamp shade PC+lamp shell ABS+lamp pole aluminum alloy | ||
| Case color | White/Black | ||
| Power | Monochrome 1.0W, Total power less than 3.6W | ||
| Lhigtsource | patch 2835 LED,0.2W/pcs | ||
| Luminous angle | Single lamp 120°light,the whole lamp 360°visible | ||
| Sound intensity | Buzzer>90DB | ||
| Class of protection | IP40 | ||
| Color layer | 1~4layer | ||
| Working condition | Alwayson/Alwayson withbuzzer | ||

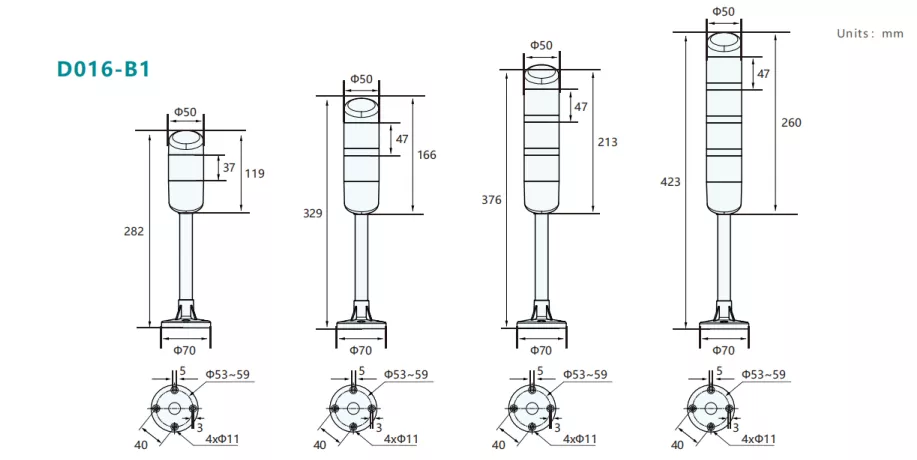

| Installation mode | Upright/bent/bar type L | ||
| Connection mode | Direct power input type(common positive/negative)/contact type | ||
| Service | 50000h | ||
| Standard wiring length | 1500mm | ||
| Operating temperature/Storage temperature | Operating temperature: -20~45℃ Storage temperature: -40~70℃ | ||
| Operating humidity/Storage humidity | Operating humidity: 10~90% Storage humidity: 10~90% | ||
| Luminescent lamp source color |
Red Yellow Green Blue | ||
