The use of dual mirror structure to produce a distinctive color recognition effect.
Heat-resistant and impact-resistant.
ABOUT SELECTION
|  |
Energy saving Highlight light beads Intelligent control CE certification | High brightness lamp beads High brightness LED chip process small light decay, long service life |
| ||
| Model analysis | ||
| ① | LED signal light series | D014 |
| ② | Non-smart/smart | Blank:Warning light (Z):RS485 intelligent warning light |
| ③ | Number of color layers | 1:Single layer 2:Two layers 3:Three layers 4:Four layers 5:Five layers |
| ④ | Working status | Blank:Steady on B:Steady on with buzzer |
| ⑤ | Signal polarity | Blank:NPN P:PNP |
Note:
1. D014-1 is single-layer and three-color;
2. light source color can be customized(R-red,Y-yellow,G-green,B-blue,W-white)
Example:Custom model：D014-4(RYBW)-indicates four layers of signal lights,light source color (from the lampshade top-down)are red,yellow,blue,white.Steady on,NPN is positive.If you need to customize,please contact our sales staff;
3. D014(Z)-3 color layer can only choose 3 layers,light source color can not be customized;
4. D014(Z)-3 working state can only be steady on;
5. D014(Z)-3 no signal polarity is optional.

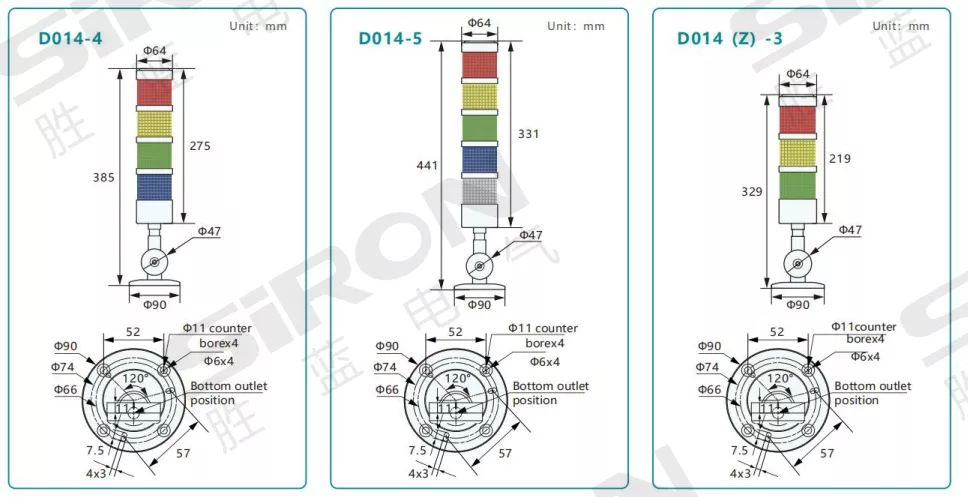

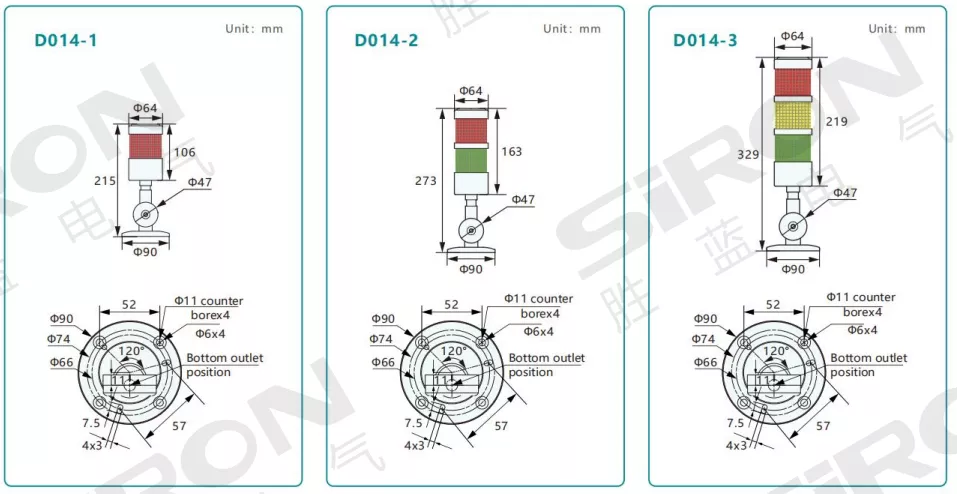

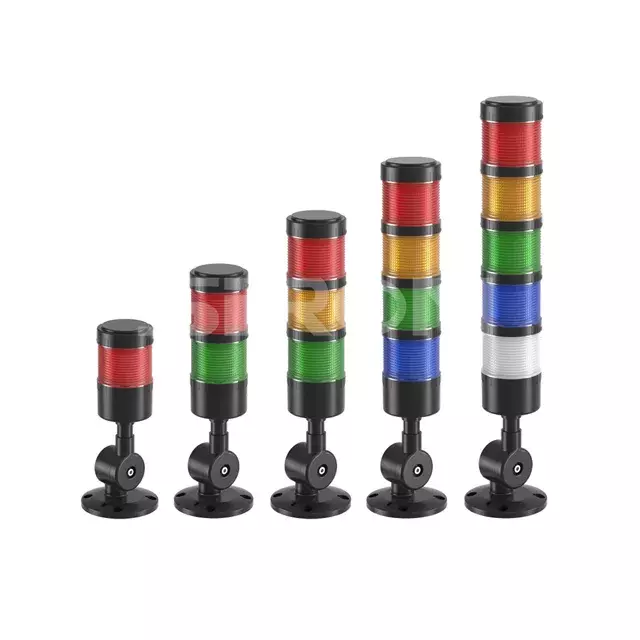

Specifications
Model | D014-1 | D014-2 | D014-3 | D014-4 | D014-5 | D014(Z)-3 |
Appearance |
|
|
|
|
|
|
Luminescent lamp |
|
|
|
|
|
|
Layer number of color | Single-layer | Two-layers | Three-layers | Four-layers | Five-layers | Three-layers |
Nominal voltage | 24VDC | |||||
Rated current | Multi-layer multi-color.red 0.07A,yellow 0.09A,green 0.06A,blue 0.06A,white 0.06A | |||||

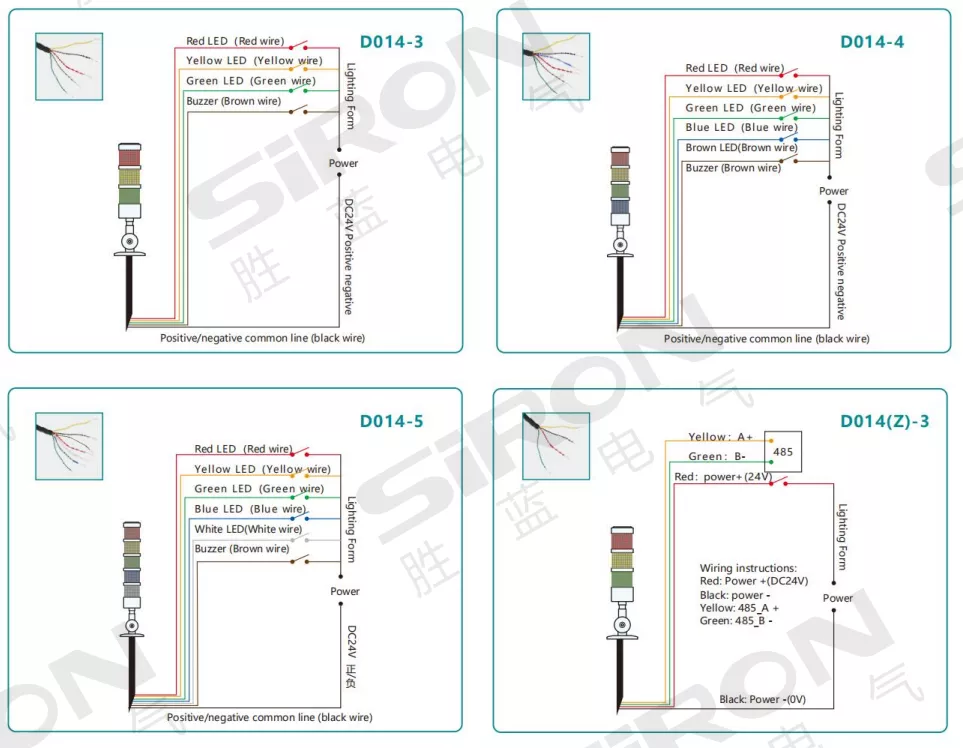

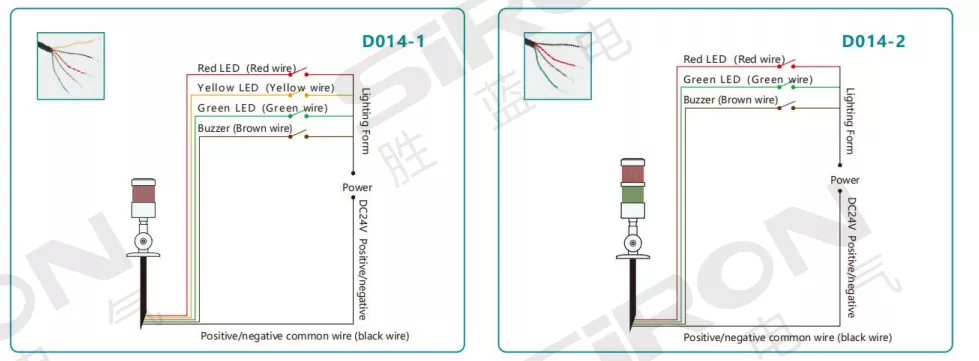

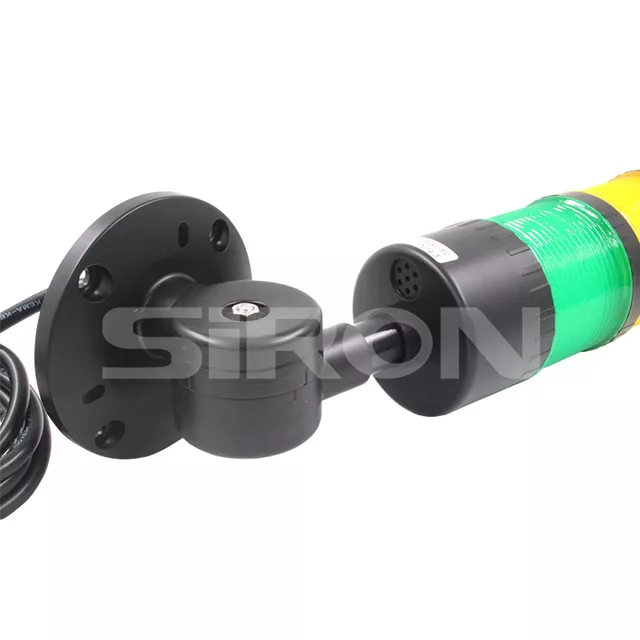

Installation method | Bend | |||||
Working status | Always on/Always on with buzz/flashing/flashing with buzz | Always on | ||||
The material | Light shade ABS+Light shell translucent PC | |||||
Protection grade | IP20 | |||||
Bean Angle | 360° | |||||
Service life | 50000h | |||||
Environment temperature | -25~55℃ | |||||
Signal polarity | NPN common positive electrode /PNP common negative electrode | |||||
Standard wiring length | Standard 1500mm | USB wire length | ||||
Intelligent Warning Light Description
Play packet details
Support asynchronous serial port communication mode, through the serial port to receive the command sent by the host computer communication standard (baud rate):9600bps | Format:$SCMDpara1 para2 $O | ||||
| $ | CMD | para1 | para2 | $o | |
| Data bit:8 | start bit 0×7E | Command word | Parameter 1 | Parameter 2 | End bit0xEF |
Stop bit:1 Check bit:none Flow control:none | Each command feedback starts with $, That's Ox7E | Indicates a specification Such as control/ query, etc | Parameter 1 | Lights on or off | End bit0xEF |
Control instruction code
Sent command | 7E AA0100 EF | 7E AA 0101 EF | 7E AA0200 EF | 7E AA0201 EF | 7E AA0300 EF | 7E AA0301 EF | 7E AA0000 EF | 7E AA 0001 EF |
| Explain | D1 (yellow light)off | D1 (yellow light)on | D2(green)Off | D2(green light)on | D3(red light)off | D3(red light)on | AIl-OFF | Full open |
| For example,if you want to specify turning on a red light (Section 3 light),you need to send 7EAA0301EF return code:Success 00 failure 01 | ||||||||
