New appearance, silver texture. High light transmission high strength bullet-proof PC lamp shade.
Built-in buzzer up to 85 dB or more. The sound is loud and not harsh.
Easy to install. Reasonable structure and convenient transportation.
D010-3 Series
Brand:SiRON
Code:9405410000
Non-returnable
Product Details
Product Description
ABOUT SELECTION
 | ||
| Model analysis | ||
| ① | LED machine tool warning light series | D010-3 |
| ② | Installation mode | 1: uprighttype 2: L-shapedbracket |
③ | Color selection (Articles made to order） | 1: Thefirstlayer |
| ④ | Color selection（Articles made to order） | R: Red Y: yellow G: green (colororderfromtoptobottom) |
| ⑤ | Working condition | Blank: Alwayson B: Always onwithbuzzer S: Flashing Q: Flashingwithbuzzer |

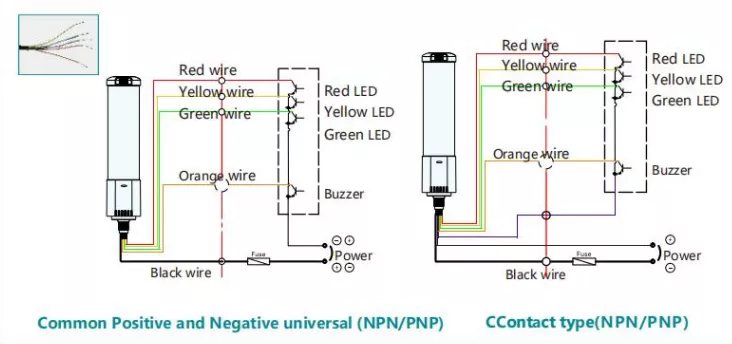

| ⑥ | Connection mode | Blank: commonpositive/negativeUniversal C: contacttype |
| ⑦ | Rated voltage | Blank：24VDC 220：220VAC |
Specifications
| Appearance/Body color | Appearance:Mitsubishi column design light body color:silver |
| Input voltage/lnput current | Input voltage:24V DC/220V AC Input current:80~260mA |
| The material | Lamp shade PC(bulletproof glue)+lamp body ABS(silver surface treatment)+aluminum base |
| Power | Monochrome 0.7~2.0W,total power is less than 6W |
| Lhigt source/Luminous angle | Light source:Patch 2835 LED,0.2W/pcs luminous Angle:single lamp 120°light,the whole lamp 360°visible |
| Sound intensity | Buzzer>85 dB |
| Color layer | Single layer 3 color |
| Class of protection | IP40 |
| Working condition | Always on /Always on with buzzer/Flashing/Flashing with buzzer |
| Installation mode | Upright/L-shaped support |
| Service life | 50000h |
| Standard wiring length | 1500mm |
| Connection mode | Direct power input type (common positive/negative)/contact type |
| Operating temperature/Storage temperature | Operating temperature:-20~45℃ Storage temperature:-40~70℃ |
| Operating humidity/Storage humidity | Operating humidity:10~90%Storage humidity:10~90% |
| Luminescent lamp source color | Red Yellow Green |
