Exquisite and beautiful appearance. Double lampshade design, light soft and bright.
Built-in buzzer up to 85 dB or more. Imported LED color chip bright spot.
Disc mounting is integrated, with the equipment. It can bend 90 degrees during transportation.
D010-2 Series
Brand:SiRON
Code:9405410000
Non-returnable
Product Details
Product Description
ABOUT SELECTION
 | ||
| Model analysis | ||
| ① | LED machine tool warning light series | D010-2 |
| ② | Color layers（Acquiesce） | 1：single layer |
③ | Color selection (Articles made to order） | R：Red Y：Yellow G：Green (Color order from top to bottom) |
| ④ | Working condition | Blank: Always on B: Always on with buzzer S: Flashing Q: Flashing with buzzer |

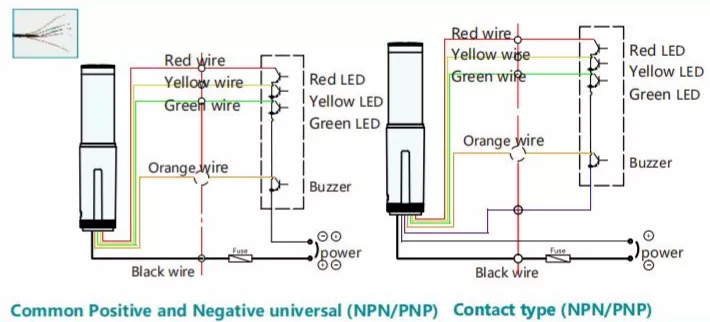

| ⑤ | Connection mode | Blank: commonpositive/negativeUniversal C: contacttype |
| ⑥ | Rated voltage | Blank：24VDC 220：220VAC |
Specifications
| Model number | D010-2-1 |
| Appearance |  |
| Input voltage/lnput current | Input voltage:24V DC/220V AC Input current:60 to 190mA |
| ThematerialCase color | Material:Lamp shade PC+lamp shell ABS Shell color:silver |
| Power | 1.4W~4.5W |
| Lhigtsource/Luminous angle | Light source:Patch 2835 LED luminous Angle:360° |
| Sound intensity/Class of protection | Sound intensity.Buzzer>90 dB Protection level:P40 |
| Color layer | Single layer 3 color |
| Working condition | Steady/steady with buzzer/Shiny/shiny with buzzer |
| Installation mode | Bending type |
| Service life/Standard wiring length | Service life:50000h Wiring length:1500mm |
| Connection mode | Direct power input type (common positive/negative)/contact typeOperating |
| Operating temperature/Storage temperature | Temperature:-20~45℃ Storage temperature:-40~70℃ |
| Operating humidity/Storage humidity | Operating humidity:10~90%Storage humidity:10~90% |
| Luminescent lamp source color |
Red Yellow Green |
