Tower design Transparent PC lampshade for a premium feel.
Built-in buzzer up to 95 decibels The sound is loud and not harsh.
Hidden folding mounting holes. Beautiful and unobtrusive
D010-1 Series
Brand:SiRON
9405410000
Non-returnable
Product Details
Product Description
ABOUT SELECTION
 | ||
| Model analysis | ||
| ① | LED machine tool warning light series | D010-1 |
| ② | Color layers（Acquiesce） | 3：Threelayers（RYG） 5：Five-layer（RYGBW） |
③ | Color selection (Articles made to order） | R：Red Y：Yellow G：Green B：Blue W：white (Color order from top to bottom) |
| ④ | Working condition | Blank: Always on B: Always on with buzzer S: Flashing Q: Flashing with buzzer |

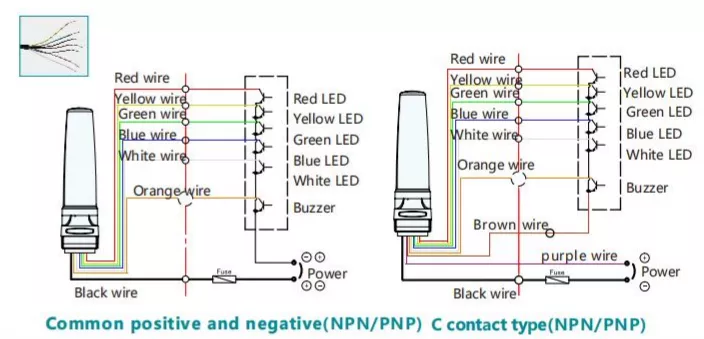

| ⑤ | Connection mode | Blank: commonpositive/negativeUniversal C: contacttype |
| ⑥ | Rated voltage | Blank：24VDC 220：220VAC |
Specifications
| Mode number | D010-1-3 | D010-1-5 | ||
| Appearance |
|
| ||
| Input voltage/lnput current | Input voltage:24V DC/220V AC Input Current:40~270mA | |||
| The material/Casecolor | Material:PC(bulletproof rubber)lamp shade,ABS lamp shell shell color:black | |||
| Power | Monochrome 1.0W,total power 6W | |||
| Lhigtsource/Luminous angle | Light source:Patch 2835 LED,0.2W/pcs luminous Angle:The whole lamp can be seen by 360° | |||
| Sound intensity/Class of protection | Sound intensity:Buzzer>95 dB Protection level:IP40 | |||
| Color layer | Single layer 3 color/single layer 5 color | |||
| Working condition | Always on /Always on with buzzer/Flashing /Flashing with buzzer | |||
| Installation mode/Connection mode | Installation mode:Bending connection mode:direct power input type (positive/negative universal)/contact type | |||
| Service life/Standard wiring length | Service life:50000h Wiring length:1500mm | |||
| Operating temperature/Storage temperature | Operating temperature:-20~45℃ Storage temperature:-40~70℃ | |||
| Operating humidity/Storage humidity | Operating humidity:10~90%Storage humidity:10~90% | |||
| Luminescent lamp source color |
Red Yellow Green Blue White | |||
